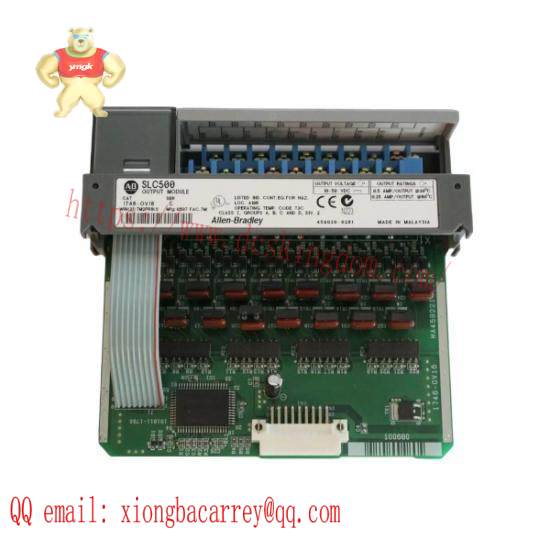

Allen-Bradley – Module

Product Model:1746-OV16

Type:Discrete Output Module

Manufacturer:Allen-Bradley

Nominal Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 VDC

Sink Outputs:16

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95%

    The Allen Bradley 1746-OV16 is a high-performance discrete output module designed for use in industrial automation systems. This module offers 16 channels of reliable digital output control, making it ideal for controlling a variety of devices in manufacturing environments. With an input voltage range of 10-50 VDC and a nominal input voltage of 24 VDC, this module ensures compatibility with a wide range of equipment. Its robust design includes an open-type enclosure that allows for easy installation and maintenance. The module’s high current rating and low voltage drop make it capable of handling demanding industrial loads without compromising performance. Additionally, the module features excellent isolation capabilities, including communication circuits rated at 500 VDC and backplane isolation at 1500 VAC, ensuring safe and stable operation in harsh environments. The Allen Bradley 1746-OV16 is compatible with the SLC 500 processor series, providing seamless integration into existing or new automation systems. With its compact size and versatile mounting options, this module is perfect for space-constrained installations.
