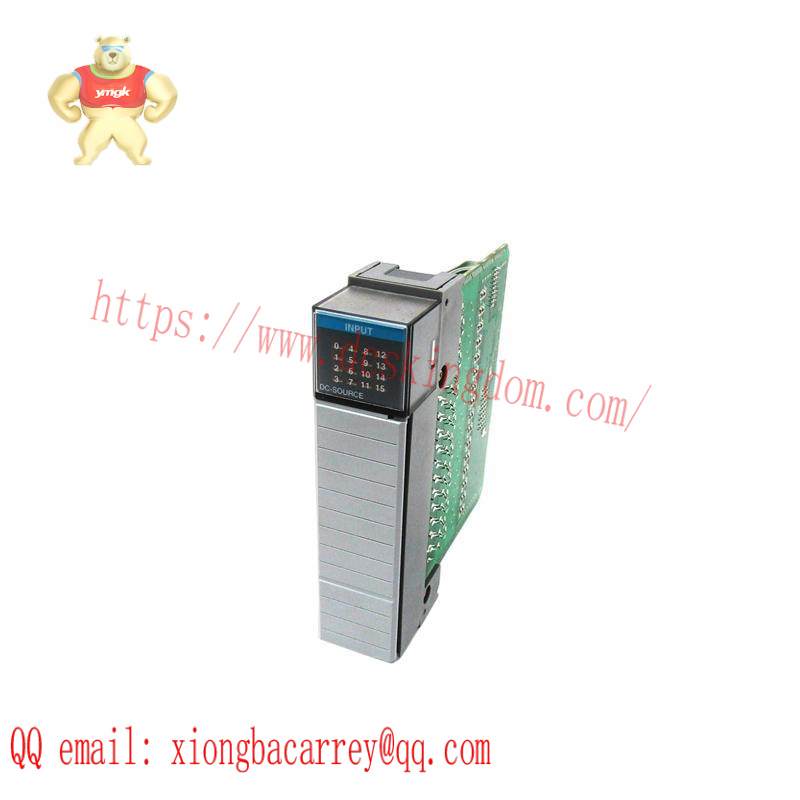

Allen-Bradley – Module

Brand:Allen-Bradley

Model:1746-IV16

Module Type:DC Input Module

Input Channels:16

Input Voltage Range:10 – 30 VDC

Input Current Rating:8 mA at 24 VDC

Off-State Input Voltage:3 VDC

Nominal Current:8 mA at 24 VDC

Off-State Current:1 mA

Communication Circuits Isolation:500 VDC

Backplane Isolation:1500 VAC

Temperature Rating:0 – 60 °C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    The Allen-Bradley 1746-IV16 DC Input Module is an essential component for any industrial automation system. With its robust design, this module offers 16 channels of digital input functionality, allowing for precise monitoring of various industrial processes. Each channel supports a wide input voltage range from 10 to 30 VDC, ensuring compatibility with a variety of sensors and devices. The off-state voltage of 3 VDC guarantees minimal interference, while the nominal current rating of 8 mA at 24 VDC ensures efficient operation. Isolation voltage up to 500 VDC provides superior protection against electrical noise and interference. Designed for reliability, the module operates within a temperature range of 0°C to 60°C and can withstand humidity levels from 5% to 95% non-condensing environments. Its compact design and easy installation make it suitable for integration into existing systems without requiring significant modifications. The Allen-Bradley 1746-IV16 DC Input Module is a cost-effective solution for enhancing the accuracy and efficiency of industrial control systems.
