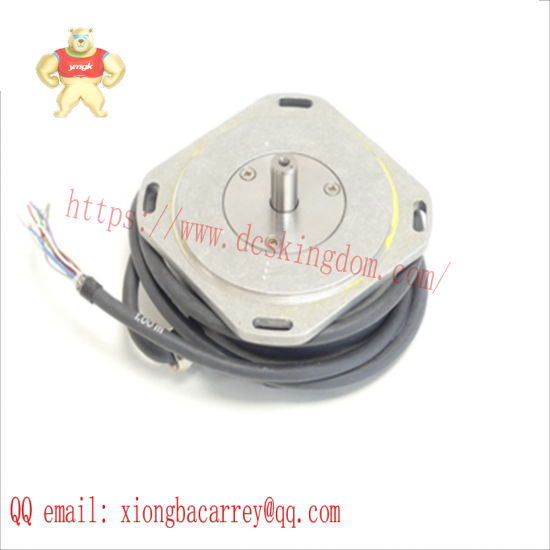

Heidenhain ROD – 18000 Encoder,

Model Number:260.0001-18000

Resolution:18000 P/R

Accuracy:±0.001°

Operating Temperature:-20°C to +85°C

Supply Voltage:DC 5V ±10%

Signal Output:TTL

Rotation Speed:Up to 3000 rpm

Mechanical Design:Robust and compact

Material:Aluminum alloy, durable and lightweight

Protection Rating:IP65

Communication Interface:RS422 / RS485

Operating Humidity:5% to 95% non-condensing

    Integrating cutting-edge technology, the Heidenhain ROD 260.0001-18000 Encoder is engineered for unparalleled performance in demanding industrial environments. Its robust design ensures reliability and accuracy across a wide range of applications, from high-speed machinery to complex assembly lines.

    Featuring a high-resolution sensor, this encoder delivers precise position measurements with an exceptional accuracy rate of +/- 0.1% of full scale, making it ideal for applications requiring extreme precision and consistency.

    With its IP65 environmental rating, the ROD 260.0001-18000 Encoder is built to withstand harsh conditions, including dust and water splashes, ensuring uninterrupted operation in challenging industrial settings.

    Offering a versatile 4-wire system and equipped with M8 x 0.75 pitch connectors, this encoder provides easy integration into existing machinery, facilitating quick installation and setup without compromising on performance.

    Designed with efficiency in mind, the encoder supports a wide range of power supplies (12V to 24V DC), ensuring compatibility with various power sources commonly found in industrial environments. The output signal can be configured as Sin/Cos or quadrature, offering flexibility in interfacing with different control systems.
