Allen-Bradley – Drive

Current (AC):18 Amps RMS

Input Frequency (AC):47-63 Hz

Input Voltage (AC):120 – 240 VAC RMS, 1-Phase

Output Voltage:100-240VAC

Output Frequency Range:0-400 Hz

Continuous Output Power:1kW

Continuous Output Current:1A

Intermittent Output Current:30A (0-peak)

Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)

Weight:N/A

Operating Temperature:0-55 °C (32-131 °F)

Storage Temperature:-40-70 °C (-40-158 °F)

Relative Humidity:5-95% without condensation

Operating Shock:15 g (3 pulses, 11 ms)

Nonoperating Shock:30 g (3 pulses, 11 ms)

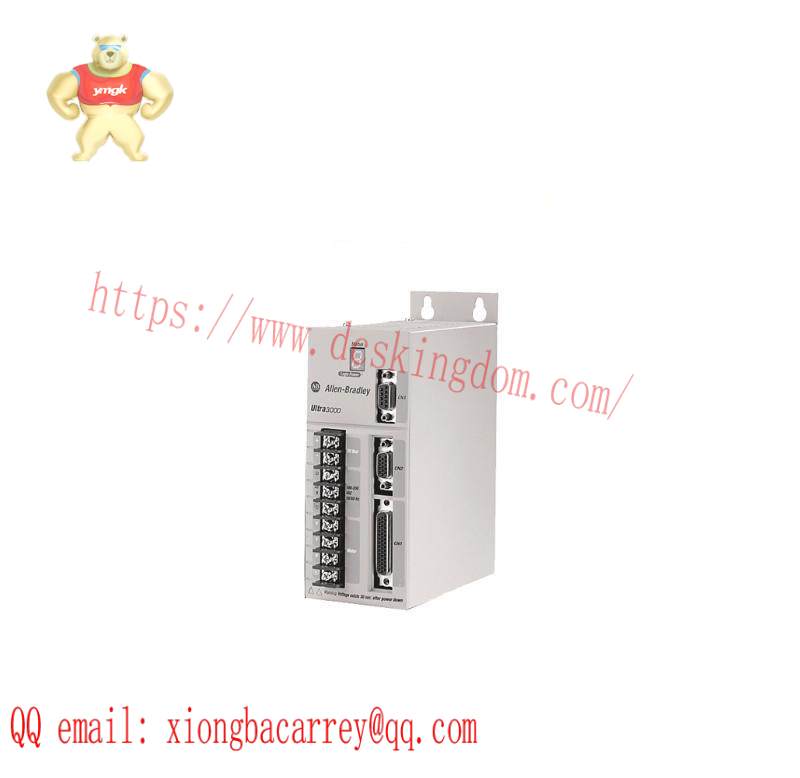

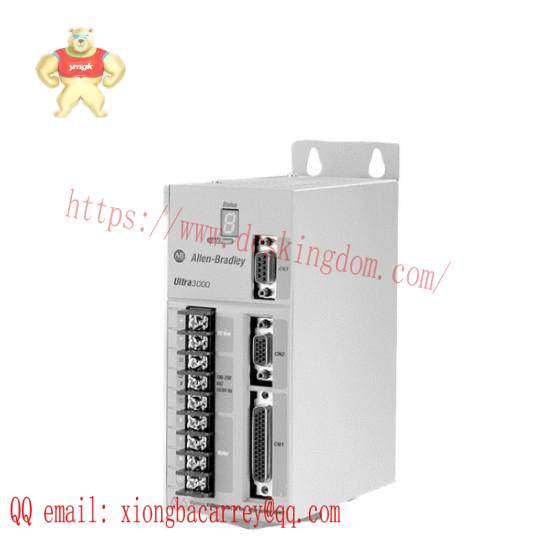

    The Allen-Bradley 2098-DSD-020X Digital Servo Drive is a standard drive designed for efficient motion control in industrial settings. It operates within a wide range of input voltages (120-240VAC rms, 1-Phase) and currents (18 Amps), ensuring reliability across diverse applications. Its robust design features a compact form factor (7.8 x 5.68 x 3.89 in) that fits seamlessly into existing systems. The drive is engineered to handle high-frequency operations (47-63 Hz) and offers a continuous output power of 1kW, making it suitable for demanding tasks. It also boasts an overvoltage protection feature up to 400 Volts dc, safeguarding your equipment from potential surges. With precise positioning capabilities, this drive integrates seamlessly with Allen-Bradley’s Kinetix Servo Motor series, enabling accurate motion and position control. Whether you’re implementing simple indexing or multi-axis motion control, the 2098-DSD-020X delivers exceptional performance and reliability.
