ABB – Board

Operating System Compatibility:ABB DeviceNet compatible

Data Acquisition Channels:16 Analog Input and 16 Digital Input/Output

Sampling Rate:Up to 100 ksamples/sec

Analog Resolution:12-bit

Power Supply Voltage:10 to 30 VDC

Environmental Conditions:Temperature range: -25°C to +60°C

Dimensions:100mm x 51.8mm x 30.5mm

Weight:Approx. 30g

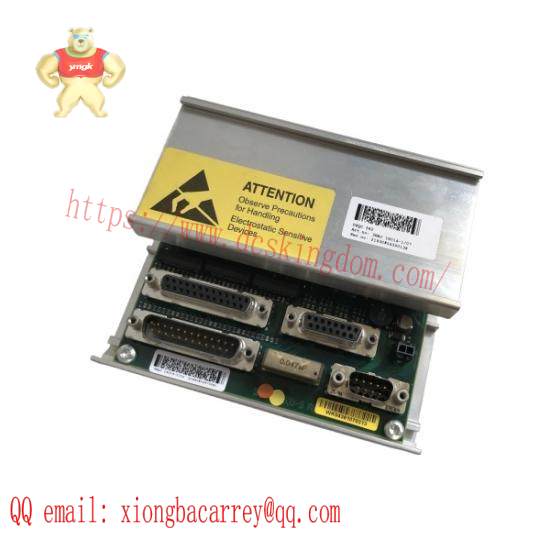

    The ABB DSQC562 Measurement Board boasts exceptional versatility and accuracy, making it a preferred choice for demanding industrial environments. It seamlessly integrates into a wide array of automation systems, enhancing operational efficiency and reliability.

    Featuring 16 analog input channels and 16 digital input/output channels, this board offers comprehensive monitoring and control capabilities, facilitating real-time data acquisition and feedback loops in manufacturing processes.

    With a sampling rate of up to 100 ksamples per second, the DSQC562 ensures rapid response times and precise measurements, crucial for applications requiring high-speed data processing.

    Its 12-bit analog resolution delivers unparalleled detail in measurement results, enabling accurate adjustments and control over various parameters within industrial machinery.

    Operable within a broad temperature range of -25°C to +60°C, this board is designed for robust performance in diverse industrial settings, ensuring reliable operation under varying environmental conditions.
