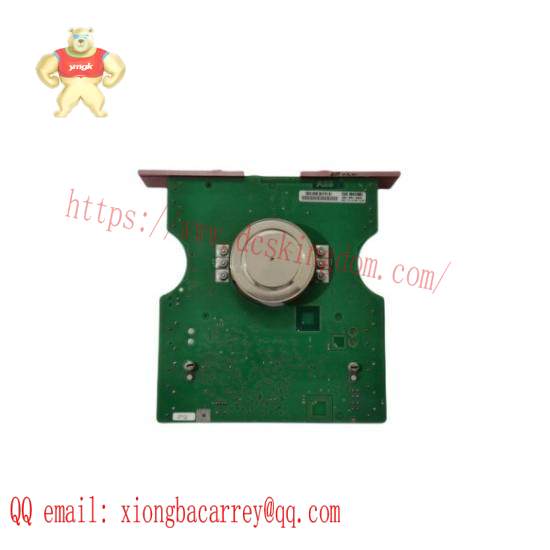

ABB 5SDF0460F0001 – Module

Operating Voltage:600 VDC

Current Rating:460 A

Switching Frequency:25 kHz

Insulation Class:Class 1

Temperature Range:-40°C to +125°C

Package Type:TO-247

Mounting Style:Through-hole

    Integrating advanced semiconductor technology, the ABB 5SDF0460F0001, 416-005-1 IGBT Modules are designed for optimal performance in demanding industrial environments. These modules are characterized by their robustness and efficiency, ensuring reliable operation under varying conditions.

    Featuring a compact design with an efficient thermal pad for natural convection cooling, these IGBTs minimize heat dissipation, leading to enhanced system reliability and longevity. They are ideal for applications requiring high power density and fast switching capabilities, such as in electric motor drives, renewable energy inverters, and power supply systems.

    With a wide operating temperature range from -40°C to 125°C, these modules are suitable for extreme environmental conditions encountered in industrial settings. Their ability to withstand high temperatures without compromising performance makes them indispensable in industries where reliability is paramount.

    Certified to international safety standards including UL, CE, and ISO9001, these IGBT Modules comply with stringent quality and safety regulations. This ensures not only regulatory compliance but also peace of mind for users in terms of product safety and performance.

    Designed for ease of integration into existing systems, these modules offer seamless compatibility with various control systems and interfaces. Their straightforward installation process minimizes downtime during system upgrades or maintenance operations, contributing to efficient plant operations and reduced total cost of ownership.
