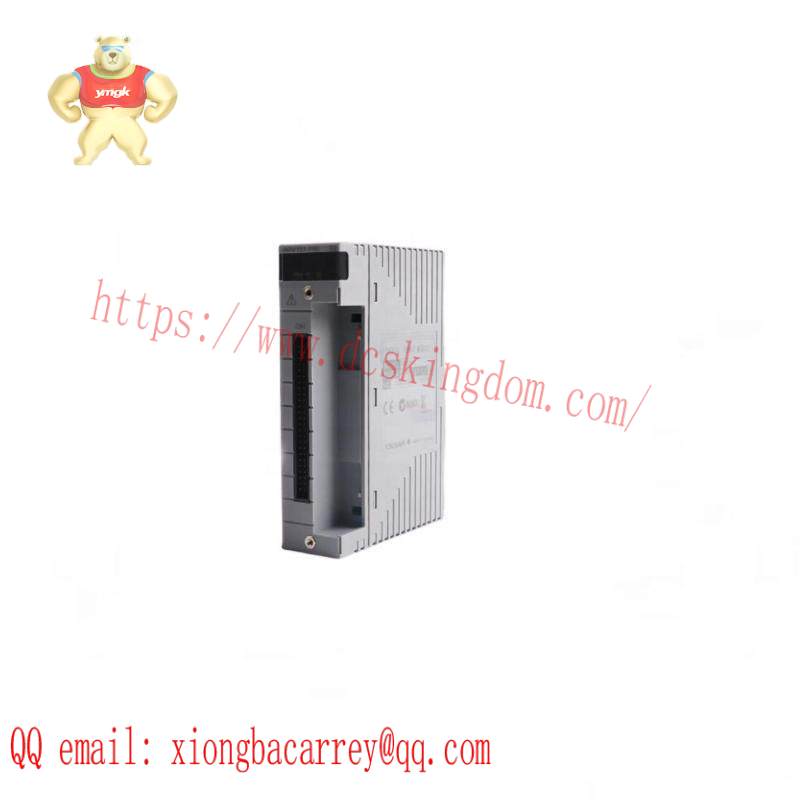

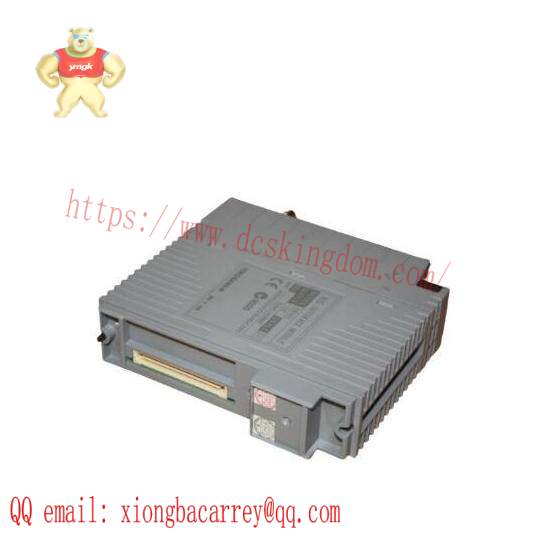

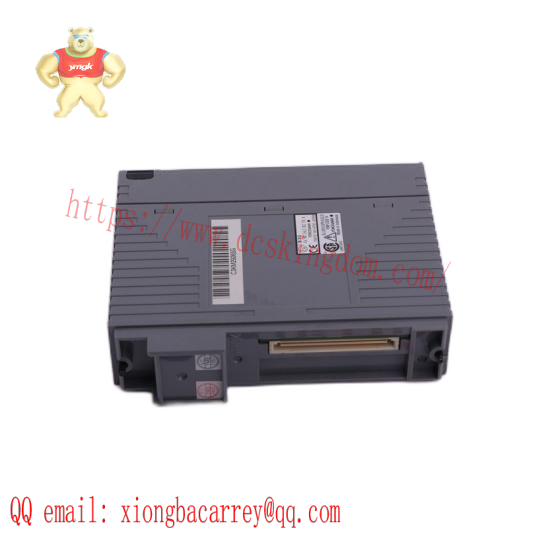

YOKOGAWA F3NC02 – 0N Positioni…

Startup Time:6 ms max.

Control Output:-10 to 10 V

Data Backup:Backup using the CPU module

External Contact Output:Servo on, driver reset and brake off

Encoder Type:Absolute or Incremental (Phase A/B)

Encoder Resolution:Up to 2M pulses per second

Control System:Semi-closed loop control based on encoder feedback

    The YOKOGAWA F3NC02-0N Positioning Module is designed to deliver exceptional precision and reliability in industrial automation systems. Its ability to achieve a startup time of just 6 ms ensures quick response times, making it ideal for high-speed applications. The module’s analog voltage output (-10 to 10 V) provides smooth and accurate velocity control, while data backup functionality ensures uninterrupted operation even during unexpected power interruptions. Additionally, the external contact output allows for precise control over servo activation, driver resets, and brake operations. The module supports both absolute and incremental encoders, with the incremental encoder capable of handling up to 2 million pulses per second in 4-time multiplication mode. This semi-closed loop control system, based on encoder feedback, enhances overall system stability and performance. The inclusion of external contact inputs, such as limit switches and driver alarms, further improves operational safety and efficiency.
