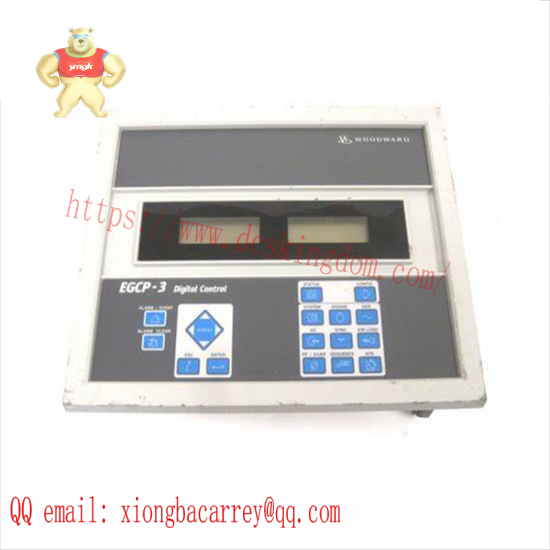

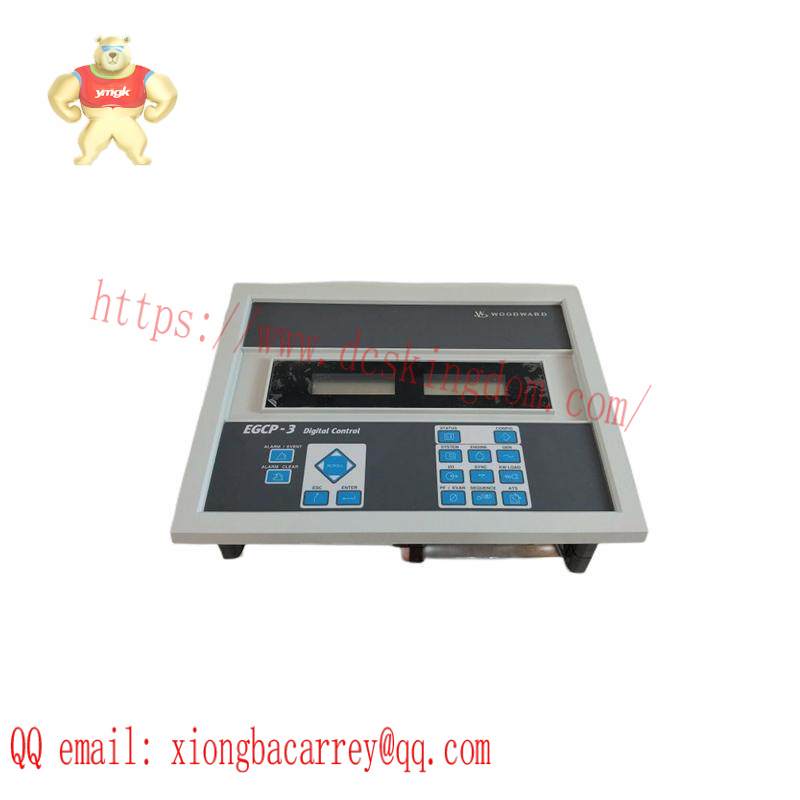

WOODWARD EGCP – 3, 8406

Dimensions:282H x 359W x 135D mm

Speed Bias Output:4–20 mA, 0–5 V, PWM, or ±3 V

Input Voltage:18-32 V dc

Manufacturer:Woodward

Operating Temperature Range:-20 to +70 °C

Slot Type:3

Serial Ports:3

Standards:NEMA 4 when properly installed

Storage Temperature Range:-30 to +80 °C

Weight:4.3 kg (9.5 pounds)

    The WOODWARD EGCP-3 8406-113 is part of the Woodward EGCP-3 Engine Generator Control Package. It is designed for use in hazardous and non-hazardous locations, meeting safety standards for Class I, Division 2 applications. Its microprocessor-based technology ensures precise control and communication with other EGCP-3 controls, making it ideal for supervising generator sets and utility mains paralleling. This control module offers versatile speed bias outputs including 4–20 mA, 0–5 V, PWM, or ±3 V, and operates on a wide input voltage range of 18-32 V dc. The robust design allows for reliable operation within a broad temperature range, from -20 to +70 °C, and it can be stored in temperatures ranging from -30 to +80 °C. The compact dimensions of 282H x 359W x 135D mm make it easy to integrate into existing systems. With its high precision and reliability, the WOODWARD EGCP-3 8406-113 is a crucial component for any industrial control system requiring accurate and dependable generator control.
