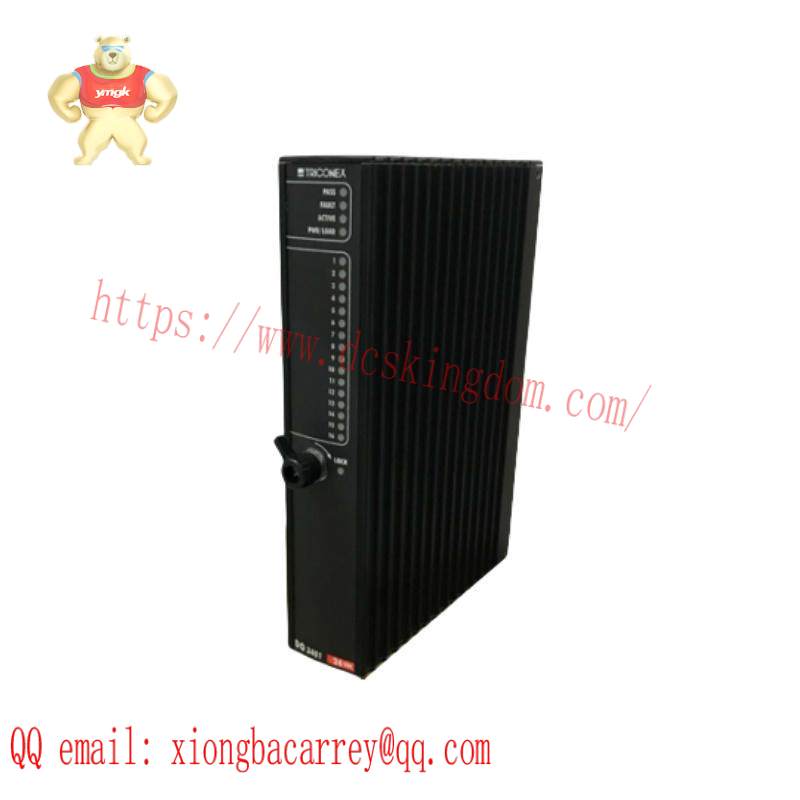

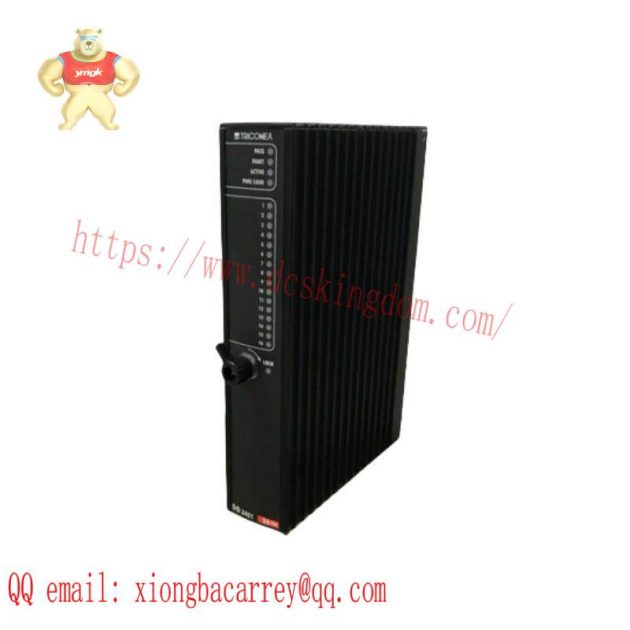

Triconex DO3401 Digital Output Module: High-Performance Control Solutions for Industrial Automation

Product Type:Digital Output Modules

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Switching Output Current:<4.8 A, self-limiting

Degraded Mode Output Current:> 0.7 A, self-limiting

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Self-limited

Diagnostic (Loss of View):Force-to-value diagnostic (FVD), <2 ms/test

Maximum Input Toggle Rate:<20/sec FVD

Off State Glitch Duration:<2 ms

Magnitude:≈36% test voltage

Output Impedance:0–5 VDC, ≈ 100 kΩ

ADC Scan Time:<1 ms for all 32 points

Functional Earth to Protective Earth Isolation:500 VDC, minimum

Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum

    Engineered with robust materials for enhanced durability and reliability in harsh industrial environments.

    Supports versatile applications across various industries, from manufacturing to energy sectors.

    Features advanced diagnostic capabilities for quick issue detection and resolution.

    Offers a wide operational voltage range ensuring compatibility with diverse system configurations.

    Comes with comprehensive documentation and support services for easy integration and maintenance.
