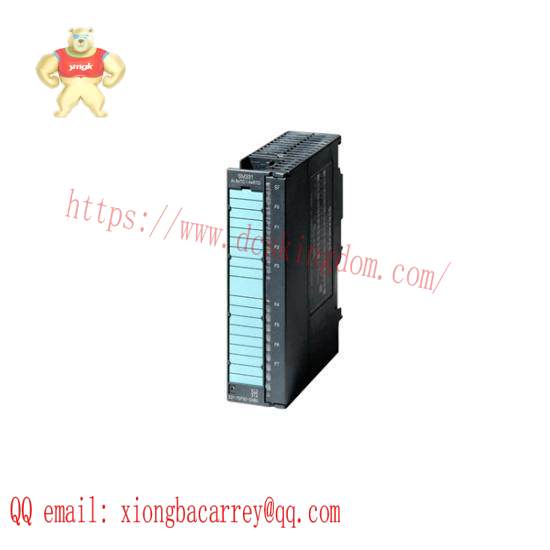

Siemens – Module

Manufacturer:SIEMENS

Model Number:6ES7331-7RD00-0AB0

Module Type:Analog Input

Module Class:S7-300

Number of Channels:8

Resolution:13-bit

Signal Types Supported:[“Voltage”,”Current”,”Resistance”,”Temperature”]

Isolation:Optically Isolated

Communication Protocol:Profinet

Operating Voltage:12-24VDC

Power Consumption:≤2.5W

Dimensions:13.20 x 15.20 x 5.10 mm

Weight:0.293 kg

    The SIEMENS SIMATIC 6ES7331-7RD00-0AB0 Analog Input Module is an essential component for industrial automation systems, designed to provide accurate and reliable data acquisition. This robust module is compatible with the SIMATIC S7-300 series, ensuring seamless integration and optimal performance.

    Featuring 8 channels, it supports various signal types including voltage, current, resistance, PT100 temperature sensors, and thermocouples (NI100, NI1000, LG-NI1000). The high-resolution 13-bit ADC ensures precise measurements, critical for process control and monitoring applications.

    With optical isolation, this module safeguards against electrical interference, enhancing system stability and reducing the risk of false readings. Its fast update speed of 66 milliseconds allows for real-time monitoring and response to changes in the process environment.

    The module is equipped with a durable, compact design that meets industrial standards for size and weight, making it suitable for space-constrained environments. The 40-pin connector provides a secure interface for easy installation and maintenance.

    SIEMENS commitment to quality is evident in the 6ES7331-7RD00-0AB0’s built-in diagnostics feature, which monitors the health of the module and its connections, ensuring continuous operation and minimizing downtime. This makes it an ideal choice for critical industrial applications requiring high accuracy and dependability.
