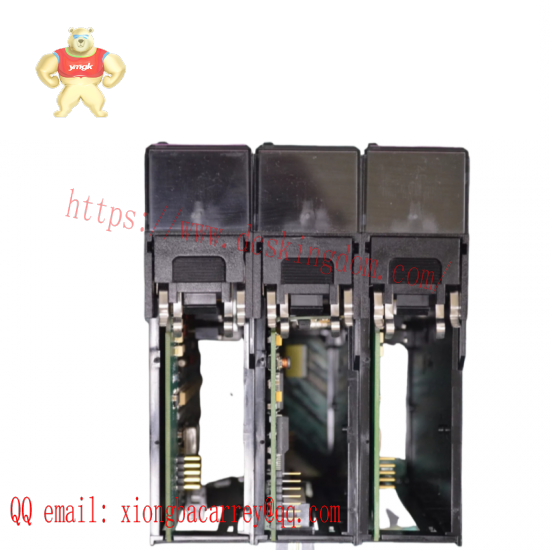

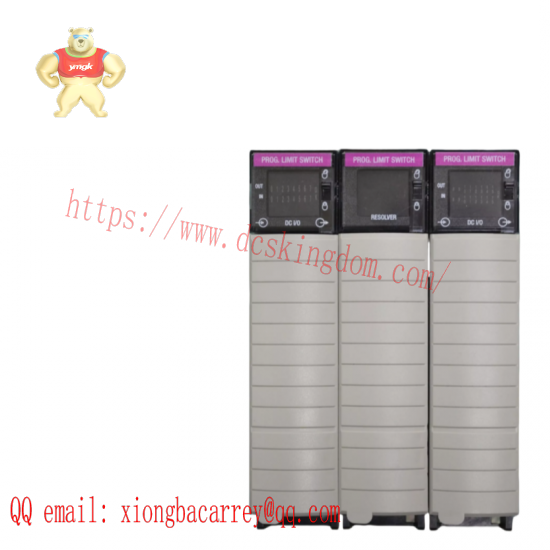

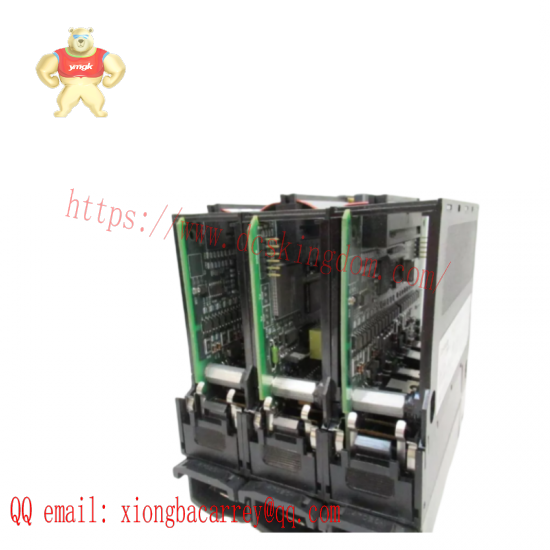

Rockwell Automation 1756-PLS ControlLogix Programmable Limit Switch Module

Type:Programmable Limit Switch Module

Model Number:1756-PLS

Manufacturer:Allen-Bradley

Module Series:ControlLogix

Number of Channels:16

Switching Speed:Less than 1 ms

Operating Voltage:24V DC

Current Rating:10 mA

Switching Points:2 per channel

Switch Contact Rating:250V AC, 1A @ 24V DC

Operating Temperature Range:-40°C to +85°C

Enclosure Type:IP20 Open Type

Communication Interface:ControlNet

Diagnostic Features:On-board diagnostics for troubleshooting

    The Allen-Bradley 1756-PLS ControlLogix Programmable Limit Switch Module is an indispensable component for achieving high-precision control in industrial environments. This module offers unparalleled reliability and flexibility, designed to integrate seamlessly into existing ControlLogix systems.

    With its programmable limit switch functionality, users can easily customize switch settings to match their specific application requirements. This feature ensures that machinery stops precisely at the programmed limit, preventing damage and optimizing production efficiency.

    Featuring a robust IP20 open-type enclosure, the module is designed to withstand harsh industrial conditions. Its wide operating temperature range (-40°C to +70°C) allows it to perform reliably in extreme environments.

    The Allen-Bradley 1756-PLS module supports ControlNet communication, enabling seamless data exchange within the system. This capability enhances overall system performance and facilitates advanced diagnostics and troubleshooting.

    Easy to install and maintain, the module is compatible with various mounting styles, making it adaptable to different industrial settings. Whether installed in a control cabinet or mounted directly on the machine, this module ensures efficient and consistent operation.
