Phoenix – Module

Nominal Input Voltage Range:12 V DC to 24 V DC

Nominal Output Current:40 A

Power Loss Nominal Load Max:10 W (IOUT = 20 A)

Net Weight:0.75 kg

Connection Method:Screw connection

Designation:Extended Product Type: Other

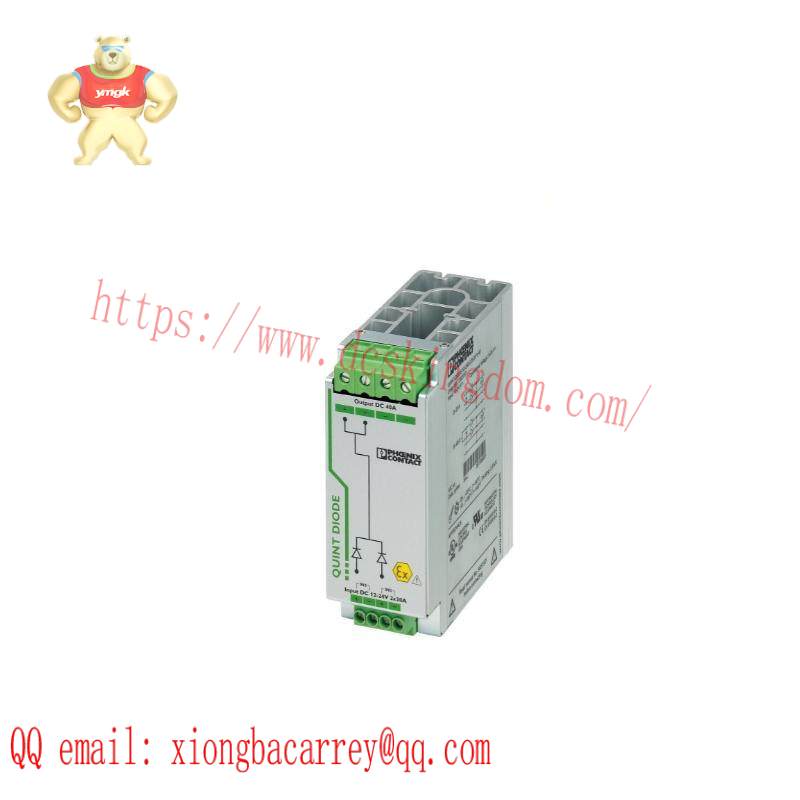

    Introducing the Phoenix Contact QUINT-DIODE/12-24DC/2×20/1×40 power supply module, a critical component for ensuring seamless operation in industrial control systems. This robust unit is engineered to withstand harsh conditions, making it an ideal choice for manufacturing floors, assembly lines, and other high-demand applications.

    With its wide input voltage range of 12 V DC to 24 V DC, the QUINT-DIODE/12-24DC/2×20/1×40 is capable of providing stable and reliable power outputs under varying conditions. Its ability to handle up to 40 A of output current ensures that even the most power-hungry devices can operate efficiently.

    Featuring a maximum power loss of just 10 W when the load is set to 20 A, this power supply unit demonstrates exceptional efficiency, reducing energy waste and operational costs. The compact design, optimized for DIN rail mounting, makes installation quick and straightforward, minimizing downtime and enhancing system integration.

    Engineered with advanced insulation and protection features, including a minimum insulation resistance of 10 MΩ and a high-efficiency rating of ≥ 95%, this module ensures safety and durability. It operates reliably within a temperature range of -20°C to +55°C, making it suitable for various industrial environments.

    The Phoenix Contact QUINT-DIODE/12-24DC/2×20/1×40 comes with a comprehensive set of specifications tailored to meet the stringent demands of modern industrial automation, including a 2-year warranty for peace of mind. Its compatibility with a wide range of devices further enhances its versatility, making it a valuable addition to any industrial setup.
