Module Type:High-Speed Positioning Module
Model Number:A1SD75P1-S3
Series Family:Mitsubishi
Core Functionality:[“Motion control”,”PTP control”,”Path control (linear, arc, helical)”,”Speed control”,”Speed-position switching control”,”Position-speed switching control”]
Output Type:Transistor Outputs
Interpolation:[“Linear”,”Circular”,”Helical”]
Axes Supported:Up to 4 axes
Pulse Rate:200K pulses per second
Connection:2 x 40-pin connectors
Mounting Mode:Backplane / Rack
Control System Compatibility:MELSEC iQ-R Series

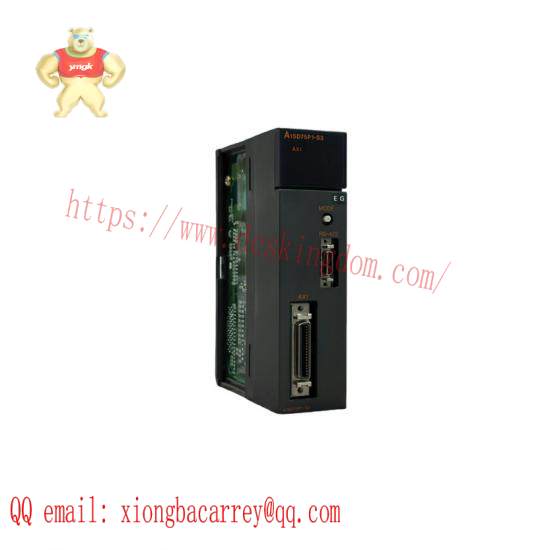

Experience unparalleled precision and speed with the Mitsubishi A1SD75P1-S3 Positioning Module, a cornerstone of modern industrial automation. Designed with state-of-the-art technology, this module is meticulously engineered for demanding applications requiring high accuracy and reliability.
Featuring a robust design with compact dimensions, the A1SD75P1-S3 is optimized for integration into a wide range of systems. Its versatile control modes—PTP, Path, Speed, and Speed-Position Switching—enable flexible and efficient motion control tailored to specific needs.
Utilizing transistor outputs, this positioning module supports linear, circular, and helical interpolations, allowing for precise trajectory control. With support for up to four axes at a pulse frequency of 200KHz, it ensures smooth operation across multiple tasks.
The A1SD75P1-S3 comes equipped with dual 40-pin connectors, facilitating easy connection and integration. Whether mounted on a backplane or a rack, its modular design ensures compatibility with various industrial setups.
Crafted from high-quality materials, this positioning module boasts durability and reliability, ensuring long-term performance without compromising on efficiency. Its seamless integration capabilities make it an indispensable component in enhancing productivity and optimizing workflows in industrial settings.
