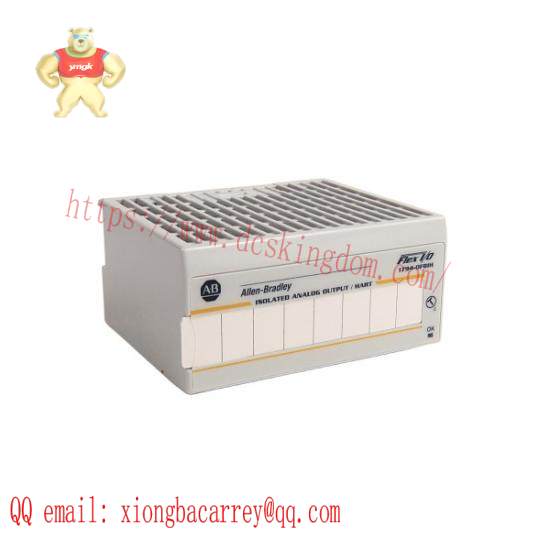

Allen Bradley – Bradley 1794

Model Number:1794-OE8H/B

Quantity of Points:8

Output Type:Analog

Current Rating:20 mA

Voltage Range:0-10 VDC / 4-20 mA

Communication Protocol:Modbus RTU

Operating Temperature:-40°C to +70°C

Enclosure Type:IP20

Dimensions (WxHxD):2.8 x 3.0 x 1.0 inches

Weight:0.5 lb

    The Allen-Bradley 1794-OE8H/B is a highly reliable and efficient 8-channel analog output module, specifically designed to meet the demands of industrial automation environments. It provides precise control over various processes, ensuring optimal performance and system reliability.

    With a wide signal range from 4 to 20 mA or 0 to 10 V, this module offers flexibility in interfacing with a variety of devices and sensors. Its Modbus-RTU communication protocol enables seamless integration with other components in your control system, enhancing overall system interoperability.

    The 1794-OE8H/B boasts a low power consumption of less than 2 watts, making it an energy-efficient choice for industrial applications. Its operating temperature range from -40°C to +70°C ensures robust operation in extreme conditions, while the IP20 enclosure type provides basic protection against dust and splashes.

    Equipped with a terminal block connector type and bus terminal connection, the module facilitates easy installation and maintenance. The compact dimensions (139mm x 139mm x 105mm) allow for space-saving integration within control panels, without compromising on functionality.

    With a maximum load compatibility of up to 300 ohms, the 1794-OE8H/B is capable of driving a wide range of loads commonly found in industrial settings. Additionally, its low input current requirement ensures minimal impact on the power supply, contributing to an efficient and stable system.
