Allen Bradley – Bradley 1794

Model Number:1794-ACNR15XT

Interface:ControlNet

Redundancy:Yes

Number of Channels:15

Operating Voltage:DC 24V

Data Transfer Rate:Up to 1Mbps

Communication Protocol Support:ControlNet, DeviceNet

Operating Temperature:-40°C to 70°C

Operating Humidity:0% to 95% RH non-condensing

Dimensions (WxDxH):104mm x 51mm x 140mm

Weight:0.3kg

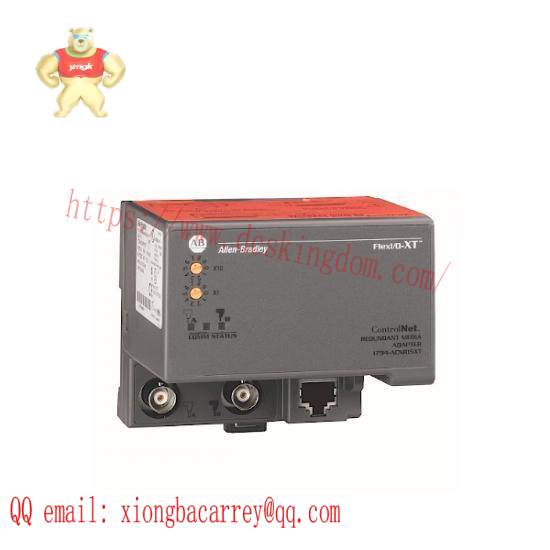

    The Allen Bradley 1794-ACNR15XT Redundant ControlNet Adapter is specifically engineered for industrial automation systems requiring high reliability and uptime. It seamlessly integrates into the Allen-Bradley network infrastructure, enhancing system redundancy and performance.

    With its dual ControlNet BNC communication ports, the 1794-ACNR15XT ensures robust data transmission, critical for real-time monitoring and control in demanding environments. Its ability to operate within an extensive voltage range of 19.2-31.2V DC ensures compatibility across various industrial power supplies.

    Equipped with isolation voltage up to 850V DC, this adapter effectively mitigates electrical noise and ensures safe and reliable operation. The inclusion of a 0.24 kg lightweight design facilitates easy installation and integration, minimizing system downtime.

    Designed for DIN rail or panel mounting, the adapter’s compact size and versatile mounting options provide flexibility in installation scenarios. The broad operating temperature range of -20 to 70 DEG C allows for deployment in a wide variety of environmental conditions.

    Withstanding shock resistance up to 30 G and vibration resistance at 5 G from 10 – 500 HZ, the Allen Bradley 1794-ACNR15XT is built to withstand the rigors of industrial environments. Its adherence to UL listing standards further reinforces its reliability and safety in industrial automation applications.
