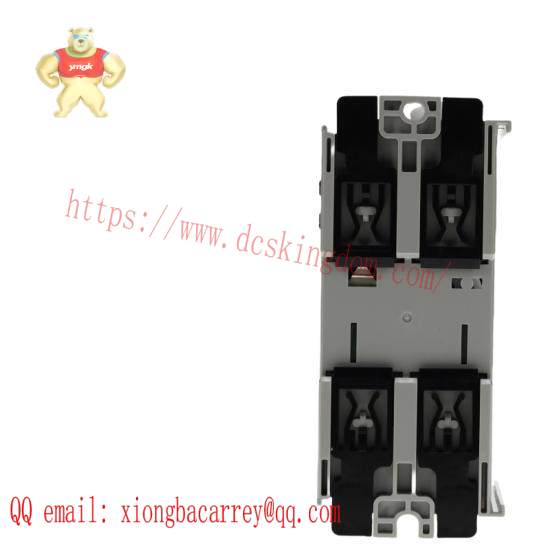

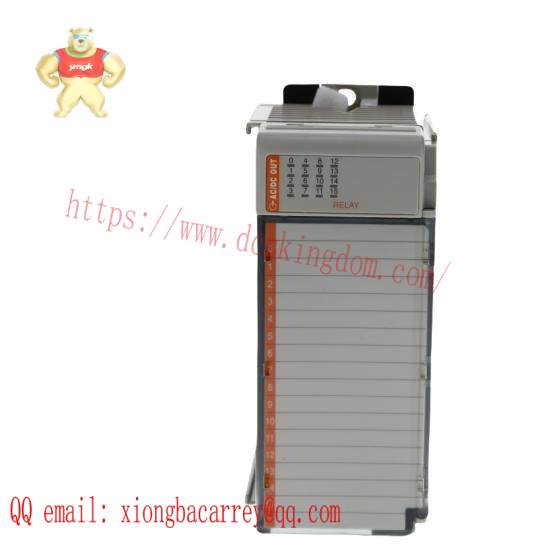

Allen-Bradley – Module

Model:1769-OW16/A

Product Family:CompactLogix

Module Type:Digital Contact Output

Input Voltage:24VDC

Output Voltage Range:20.4-26.4VDC

Number of Outputs:16

Output Configuration:Sourcing

Mounting:DIN Rail

Processor Compatibility:MicroLogix 1500 LRP Controllers

Ladder Logic Support:Yes

Single Slot Compatibility:1769 Backplane

    This Allen-Bradley module is designed with precision and reliability, making it an indispensable part of any automation system. It supports all CompactLogix and MicroLogix 1500 LRP controllers, except for specific models like 1769-QBFC1B, 1769-L16x, and 1769-L18x. Its compatibility ensures seamless integration into existing control networks, enhancing operational efficiency.

    Featuring single-slot compatibility with the 1769 backplane, the 1769-OW16/A is a testament to Allen-Bradley’s commitment to modular design, allowing for flexible expansion and configuration according to specific project requirements. It provides access to processor memory, facilitating smooth data transfer between the controller and the output module, which is crucial for real-time control applications.

    With its robust design and compatibility across various industries, the Allen-Bradley 1769-OW16/A module is a reliable choice for engineers seeking to enhance their control systems. Its compatibility with Ethernet technology ensures that it can be easily integrated into modern industrial networks, supporting advanced communication protocols and enabling seamless data exchange.

    The module’s sourcing mounting allows for easy installation on DIN rails, ensuring a secure and stable setup within industrial environments. This feature, combined with its high-performance specifications, makes it suitable for applications where precise and reliable output control is essential.

    Designed with durability and longevity in mind, the Allen-Bradley 1769-OW16/A CompactLogix Digital Contact Output Module is an investment in the future of your automation projects. Its performance is backed by Allen-Bradley’s reputation for quality and reliability, providing peace of mind to users across diverse industries.
