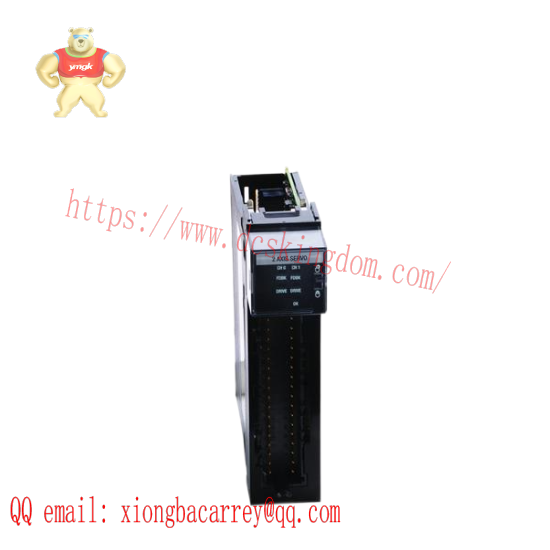

Allen-Bradley – Module

Type:Servo Module

Model Number:1756-M02AE

Manufacturer:Allen-Bradley

Core Technology:Advanced Motion Control

Max Output Power:300 Watts

Resolution:10 nanometers

Operating Voltage:24V DC

Operating Current:2 Amps

Communication Protocol:ControlNet, DeviceNet

Temperature Range:-20°C to +60°C

Protection Class:IP20

Dimension (WxHxD):86.5 x 141.5 x 175 mm

Weight:0.6 kg

Safety Standards:UL, CE, ISO 9001

    Engineered for precision motion control, the Allen-Bradley 1756-M02AE ControlLogix Servo Module is a cornerstone in industrial automation systems, designed to deliver exceptional performance and reliability in demanding applications.

    This module supports a wide range of encoder compatibility options, including both absolute and incremental encoders, ensuring seamless integration with various motion control scenarios.

    Featuring a robust open type enclosure and IP20 protection class, it withstands harsh industrial environments, guaranteeing uninterrupted operation in manufacturing floors.

    With a power supply voltage of 24 VDC and a maximum current rating of 1.5 A, the 1756-M02AE ensures stable power delivery, critical for maintaining precise motion control.

    Equipped with advanced communication interfaces, this module seamlessly integrates into the ControlLogix network, enhancing system efficiency and providing real-time access to critical operational data.

    The 1 arc-minute rotational resolution delivers unparalleled precision, enabling accurate positioning and movement control, essential for high-accuracy processes.
