Number of Input Channels:6
Temperature Measurement Range:-40°C to +850°C (-40°F to +1562°F)
Input Signal Types:Thermocouples (Type J, K, T, E, R, S, B, N, C, U)
Signal Conditioning:Voltage-to-digital conversion
Accuracy at 25°C:±0.1% of reading ± 1 count
Operating Temperature Range:-20°C to +70°C (-4°F to +158°F)
Power Consumption:1.5 W max.

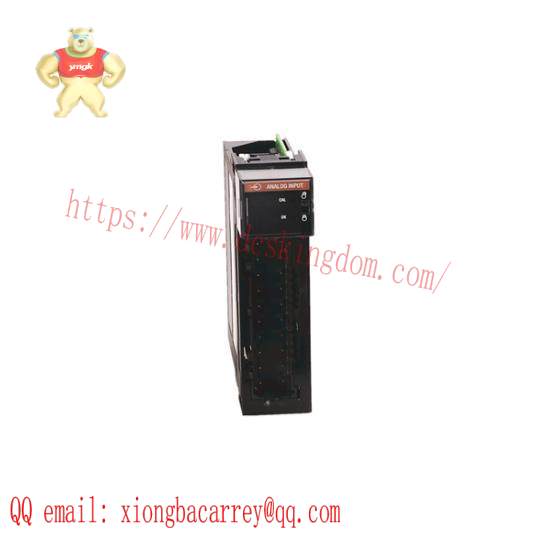

Introducing the AB 1756-IT61 CONTROLLOGIX 6 PT ISOLATED TC INPUT MODULE, engineered to enhance the accuracy and reliability of your industrial control systems. This module is meticulously designed to provide robust temperature measurement capabilities, crucial for maintaining optimal operational conditions in diverse industrial environments.
Equipped with six isolated channels, this module ensures minimal interference between inputs, offering unparalleled precision in temperature sensing. Its high isolation level prevents common-mode voltage issues, making it ideal for harsh industrial settings.
Featuring a wide operating temperature range from -40°C to +70°C, the 1756-IT61 is built to withstand extreme environmental conditions, ensuring continuous and accurate data acquisition regardless of ambient temperature fluctuations.
With its DC 24V power supply and ControlNet communication interface, this module seamlessly integrates into existing ControlLogix systems, facilitating easy setup and management of industrial processes. Its compact size and lightweight design allow for flexible installation within a variety of chassis configurations.
Designed for durability and efficiency, the AB 1756-IT61 CONTROLLOGIX 6 PT ISOLATED TC INPUT MODULE supports a current consumption of ≤15 mA per channel, minimizing energy usage while delivering precise temperature readings. This makes it an indispensable component for optimizing performance and enhancing operational efficiency in your industrial operations.
