Allen-Bradley – Module

Model Type:Communication Bridge

Manufacturer:Allen Bradley

Model Number:1756-CNB/A

Module Category:ControlLogix

Communication Protocol:ControlNet

Data Rate:Up to 10 MBPS

Temperature Range:-40°C to +70°C

Operating Voltage:12 to 24 VDC

Power Consumption:Less than 1 W

Enclosure Type:IP20

Connection Type:ControlNet Compatible

Isolation Rating:3000 VDC

Redundancy:Single or Dual

Number of Channels:1 or 2

Input/Output Configuration:Flexible for Analog and Digital signals

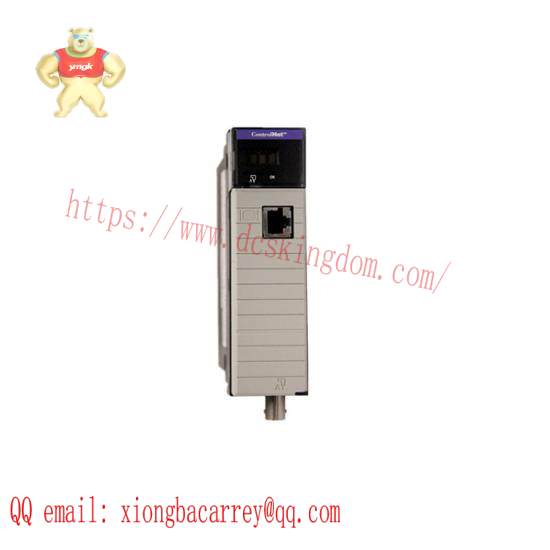

    The Allen-Bradley 1756-CNB/A ControlLogix Communication Module is engineered to enhance productivity and efficiency in industrial settings by providing a robust, reliable communication backbone.

    With its Ethernet/IP Bridge capability, this module seamlessly integrates with existing networks, allowing for real-time data exchange between devices and systems.

    Featuring an open type enclosure, it ensures easy installation and compatibility across diverse industrial environments, supporting both shielded and unshielded twisted pair cables.

    Operated within a temperature range of 0 – 60 DEG C, the module is designed for continuous operation in harsh industrial conditions, ensuring dependable performance throughout the year.

    The 5.1 W power dissipation ensures energy efficiency, reducing overall operational costs without compromising on performance. Its 30 V continuous isolation feature provides enhanced protection against electrical disturbances.

    Compliant with environmental standards, the module withstands 5 – 95% non-condensing relative humidity, making it suitable for use in various climates. Additionally, it meets vibration and shock requirements, ensuring durability even in dynamic industrial settings.
