ABB – Board

Operating Voltage:380V – 480V AC

Output Power:Up to 41kW

Frequency Range:40Hz – 60Hz

Control Protocol:Supports EtherCAT, DeviceNet, and Profinet

Motor Compatibility:Versatile for induction, synchronous, and DC motors

Protection Class:IP20 (Standard), IP54 (Optional)

Environmental Conditions:Operates in temperatures from -25°C to +50°C

Weight:Approximately 10 kg

Dimensions:L x W x H: 320mm x 175mm x 130mm

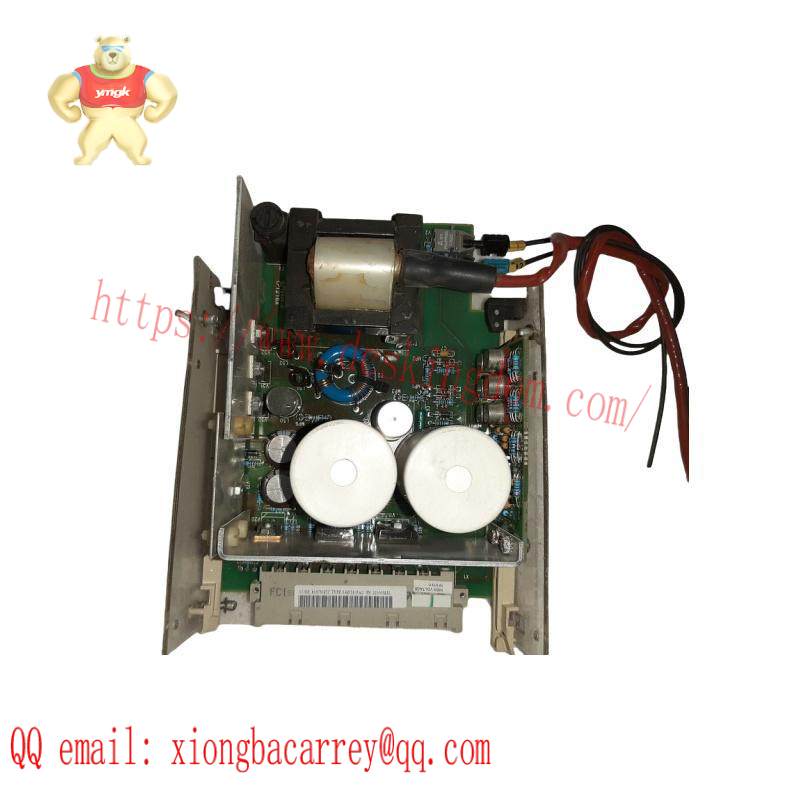

    Integrating advanced PWM technology, the ABB SADT 41PAU Inverter Power Board ensures unparalleled performance in industrial environments. This board is engineered to deliver high-efficiency operations with minimal energy loss, making it an optimal choice for manufacturing and automation processes.

    Featuring a wide operating frequency range from 0.5 Hz to 400 Hz, this inverter board provides exceptional adaptability to various industrial machinery requirements. Its robust design allows it to handle input voltages from 3-phase, 400V to 1600V, ensuring compatibility with diverse electrical systems.

    With a peak output voltage capability of DC 0V to 1000V, the ABB SADT 41PAU Inverter Power Board can precisely control and regulate the power supply to industrial equipment, enhancing operational efficiency and precision.

    Equipped with an IP21 protection class, the board offers basic splash resistance, suitable for most industrial settings. The air-cooled cooling method ensures reliable operation without the need for complex cooling systems, contributing to the board’s maintenance-free design.

    For seamless integration with existing control systems, the ABB SADT 41PAU Inverter Power Board supports RS485 communication through a dedicated interface. Additionally, it complies with the Modbus protocol, facilitating easy data exchange and control over industrial automation networks.
