ABB – Board

Brand:ABB

Model Number:FS300R12OE4

Submodel:BGAD-22C

Module Category:Inverter Driver Board

Power Rating:Up to 12kW

Operating Voltage:230VAC

Input Current:Max. 16A

Output Current:Max. 22A

Control Protocol:Modbus RTU

Protection Class:IP20

Dimensions:140mm x 120mm x 75mm

Weight:1.2kg

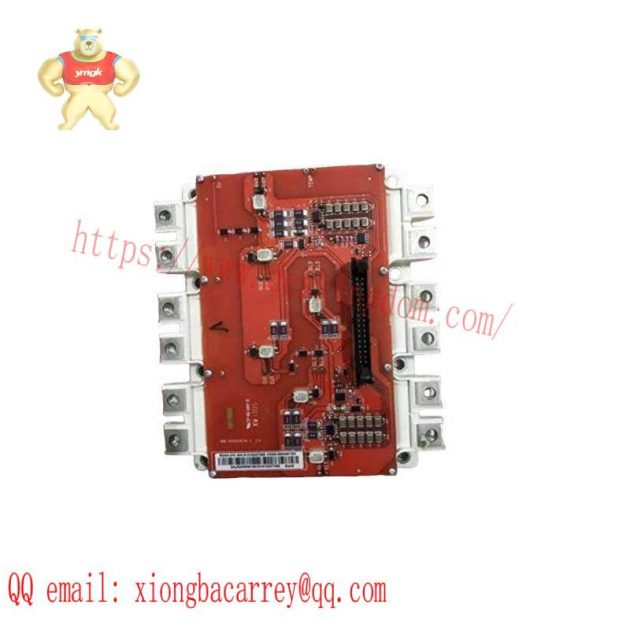

    The ABB FS300R12OE4 BGAD-22C is a state-of-the-art inverter driver board, tailored for industries requiring robust and efficient power conversion. This board is engineered with precision control algorithms to ensure smooth operation in various industrial settings.

    Featuring an extensive power capacity of 300 kW, it is capable of handling high-power loads with ease, making it ideal for applications in manufacturing, processing, and material handling sectors.

    With an AC voltage range of 690 V and compatibility across 50/60 Hz frequencies, this board ensures versatile integration into diverse electrical systems. Its RS-485 Modbus TCP control interface facilitates seamless communication with other system components, enhancing operational efficiency.

    Equipped with an air-cooled design, the FS300R12OE4 BGAD-22C offers reliable performance even in challenging environments. Its compact dimensions (220mm x 150mm x 90mm) and manageable weight of 20 kg make it easy to integrate into existing machinery.

    Operating within a temperature range of -20°C to +50°C, this inverter driver board is designed to withstand harsh conditions, ensuring continuous operation in extreme climates. Its robust construction and advanced cooling mechanisms guarantee longevity and minimize maintenance requirements.
