Operating Voltage:1200V DC
Output Current:250A
Switching Frequency:20kHz
Package Size:450x120x30mm
Weight:3.5kg
Certification:UL/IEC/EN standards compliant

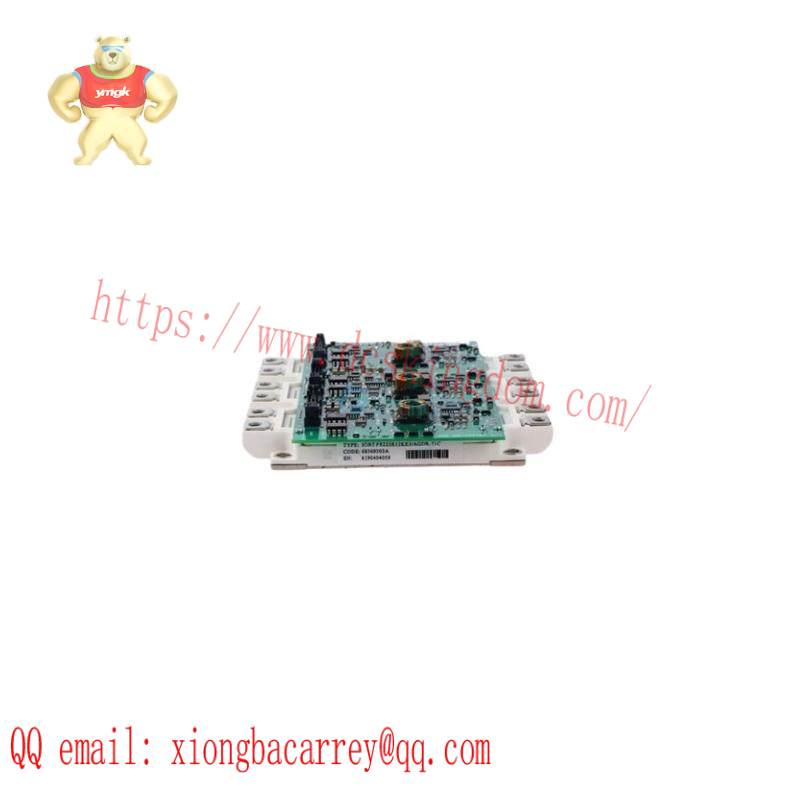

The ABB FS225R12KE3/AGDR-71C S IGBT Kit is designed to enhance the performance of industrial control systems with its robust design and high-efficiency switching capabilities.
Featuring an operating voltage of 600 V, it ensures reliable power handling under a wide range of conditions, making it suitable for various industrial applications.
With a current rating of 1200 A, this IGBT kit can manage significant loads without compromising on efficiency or reliability.
Its ability to switch at 30 kHz allows for faster response times and improved system dynamics, leading to enhanced overall system performance.
The temperature range of -40°C to +125°C ensures durability in extreme environments, while the Class F insulation provides protection against high temperatures and electrical stresses.
The TO-247 package type and thermal pad with heat sink facilitate efficient heat dissipation, reducing the risk of overheating and prolonging component life.
The kit is equipped with 1 kΩ input resistance, ensuring minimal impact on the system when controlling the gate signal, and a response time of just 1 μs, which is critical for high-speed applications.
