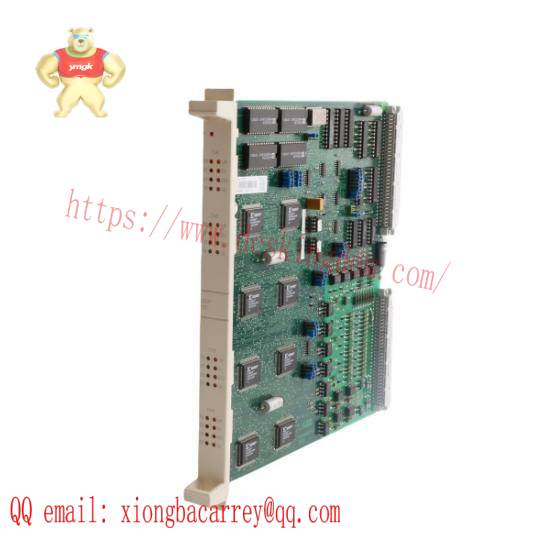

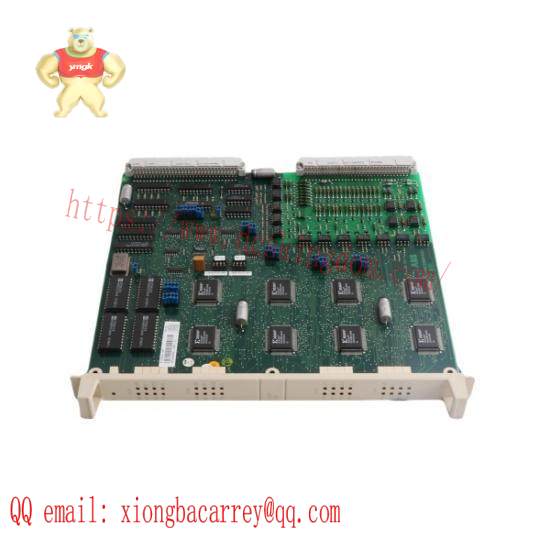

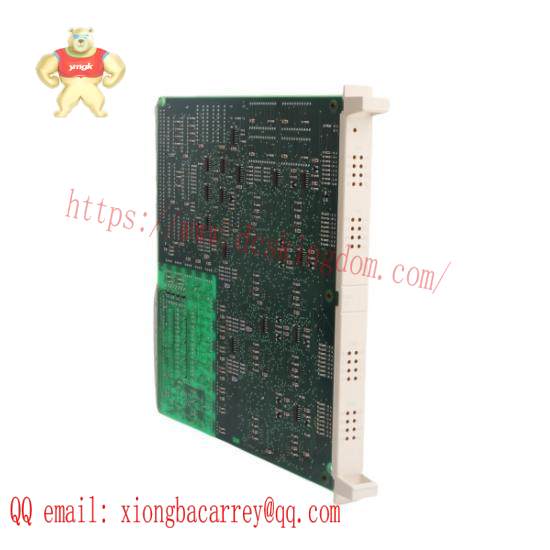

ABB 57160001 – Module

Module Type:Pulse Counting

Module Model:DSDP170

Application Voltage Range:DC 24V

Operating Temperature Range:-25°C to +60°C

Counting Rate:Up to 1 MHz

Signal Compatibility: TTL/CMOS compatible

Installation Method:Panel Mount

    The ABB DSDP170 57160001-ADF Pulse Counting Module is engineered to deliver unparalleled accuracy and reliability in pulse counting and analysis. Its advanced algorithm ensures precise measurement of both positive and negative edges of pulses within a broad operating range from 1 kHz to 1 MHz.

    Featuring an ultra-high resolution of 1 microsecond, this module excels in capturing and processing even the fastest signals with exceptional detail. The high accuracy, certified at +/- 0.01%, makes it an ideal choice for applications requiring stringent precision standards.

    Equipped with a robust power supply compatible with DC voltages from 12V to 24V, the DSDP170 57160001-ADF is capable of handling a wide variety of industrial environments. Its low current consumption ensures efficient operation without overloading system resources.

    Operable across a temperature range of -20°C to +55°C, this module is designed for durability in extreme conditions. Its humidity tolerance of 5% to 95% RH (non-condensing) ensures stable performance under varying environmental conditions.

    Compact yet powerful, the ABB DSDP170 57160001-ADF Pulse Counting Module integrates seamlessly into any automation system. Its dimensions of 100mm x 100mm x 25mm and lightweight design (0.2kg) make it easy to install and maintain.
