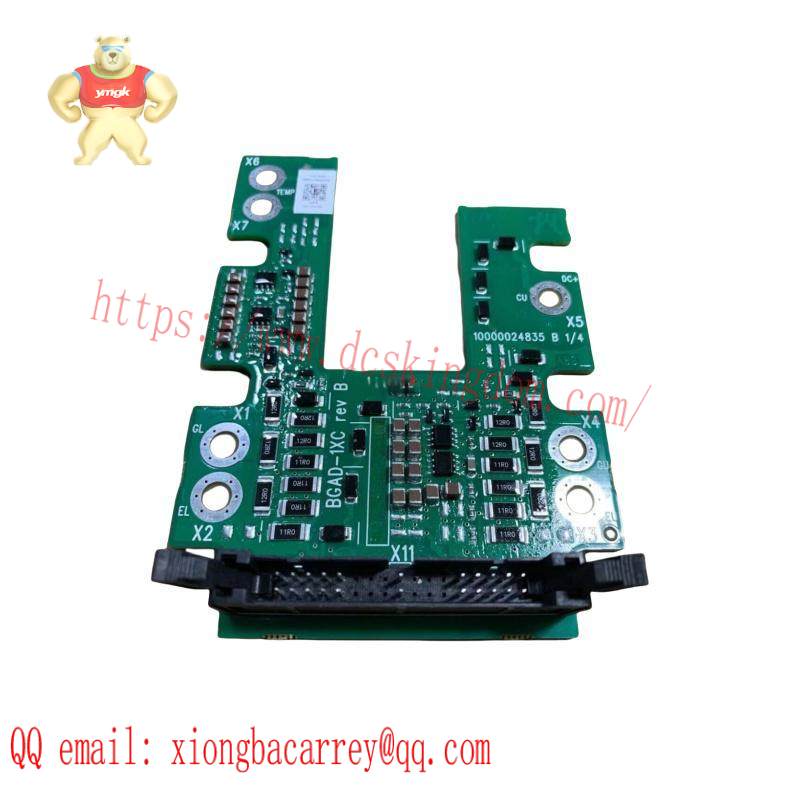

ABB BGAD – 11C IGBT Mod…

Module Type:IGBT

Manufacturer:ABB

Model:BGAD-11C

Application Voltage:3000V

Peak Current:500A

Operating Temperature Range:-40°C to +125°C

Insulation Resistance:≥ 10MΩ @ 500VDC

Package Size:45x55x5mm

Weight:0.03kg

    Integrating cutting-edge semiconductor technology, the ABB BGAD-11C IGBT module is engineered for peak performance in industrial automation applications. Its robust design ensures unparalleled reliability in even the most challenging environments, from extreme temperatures to high-frequency switching demands.

    Featuring an advanced air-cooling system, this module efficiently manages heat dissipation, enhancing its lifespan and reducing maintenance requirements. With a continuous current capacity of 1100A and an operating voltage up to 1100V, it is suitable for a wide range of power-intensive tasks.

    The BGAD-11C boasts a switching frequency of up to 12kHz, enabling swift and precise control over motors and other electrical systems. This capability is crucial for applications requiring high-speed response and accuracy, such as robotics, conveyor systems, and manufacturing processes.

    Designed with industrial durability in mind, the ABB BGAD-11C is rated for operation in temperatures ranging from -40°C to +150°C. This broad temperature tolerance makes it ideal for outdoor or harsh indoor environments where reliability is paramount.

    Certified to meet international safety standards including IEC 60601-1 and UL/CSA C22.2 No. 60601-1, the BGAD-11C ensures not only superior performance but also complies with the highest safety regulations. Trust in ABB for solutions that deliver both efficiency and peace of mind.
