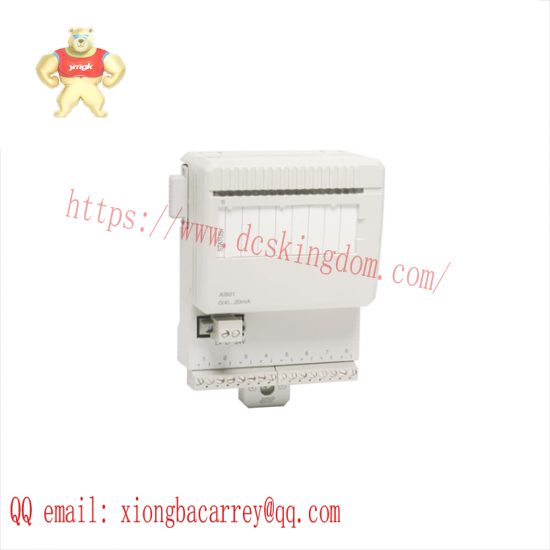

ABB – Module

Model Number:AI801-EA

Analog Channels:8

Input Range:-10V to +10V

Sampling Rate:Up to 1000 samples per second

Accuracy:±0.05% of reading ±1LSB

Operating Temperature:-25°C to +60°C

Enclosure Rating:IP20

Dimensions:92mm x 58.5mm x 86.1mm

Weight:0.24kg

    Integrating cutting-edge technology, the ABB AI801-EA is an 8-channel analog input module designed to meet the stringent requirements of industrial environments. This module ensures precise measurement and accurate data acquisition, making it indispensable for enhancing the performance of process control systems.

    Equipped with a wide operating voltage range from 12 to 24V DC, this module is highly adaptable to various industrial settings. Its robust design allows for a broad temperature range of -20°C to +60°C, ensuring reliability in challenging conditions.

    Featuring a high-resolution 16-bit ADC, the AI801-EA provides exceptional accuracy, with an impressive ±0.1% full-scale error, guaranteeing reliable and consistent readings. This precision is crucial for industries where data accuracy directly impacts productivity and efficiency.

    Ease of integration is another key feature, thanks to its RS-485 Modbus RTU communication interface. This protocol is widely recognized in the industry, facilitating seamless connectivity with existing control systems without the need for complex configurations.

    Crafted with high-quality materials and advanced manufacturing techniques, the AI801-EA is built to withstand the rigors of continuous operation. Its compact size (100mm x 100mm x 35mm) and lightweight design (0.25kg) make it easy to install and manage within tight space constraints, further enhancing its value proposition for modern industrial automation.
