ABB – Board

Operating System Compatibility:ABB RobotWare

Data Transmission Protocol:RS-232 / RS-485

Input Output Channels:4 Input, 4 Output

Power Supply Voltage:DC 24V

Communication Speed:Up to 19.2Kbps

Operating Temperature Range:-10°C to +50°C

Storage Temperature Range:-20°C to +70°C

Dimensions (mm):120 x 100 x 30

Weight (kg):0.2

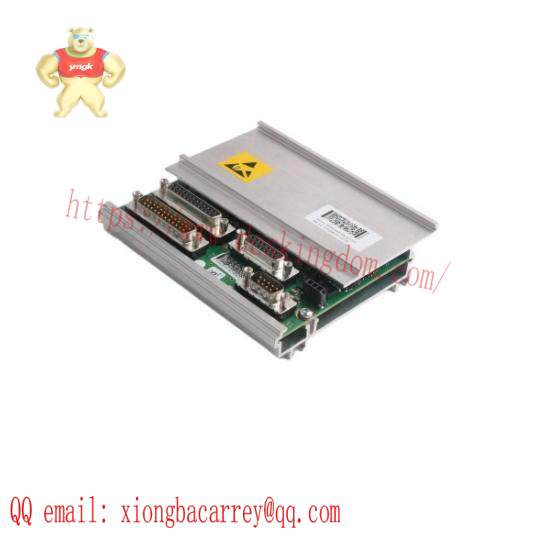

    This ABB Robot 3HAC044168-001 RMU101 Serial Measurement Board is engineered for exceptional reliability and precision, making it ideal for integration into complex robotic assembly lines where accuracy is paramount.

    Featuring a robust RS-485 interface, this board ensures smooth data communication between the robot and other control systems, facilitating seamless operation within automated production setups.

    With a measurement resolution down to 0.001mm, the board offers unparalleled accuracy in capturing precise dimensions, essential for tasks requiring micron-level precision.

    Adaptable to a wide range of operating temperatures (-20°C to +70°C), the board maintains consistent performance in various environmental conditions, ensuring continuous productivity regardless of the working environment.

    Equipped with a DC 24V power supply, it can easily integrate into existing industrial power systems, minimizing setup complexities and downtime during installation or maintenance.

    Compact yet durable, this measurement board boasts a lightweight design, allowing for easy installation and integration into space-constrained areas without compromising on functionality.
