ABB – Board

Operating Voltage:24V DC

Output Current:Up to 25A

Control Protocol:EtherCAT

Torque Capacity:3.5Nm

Temperature Range:-20°C to +70°C

Mechanical Dimensions:120mm x 100mm x 30mm

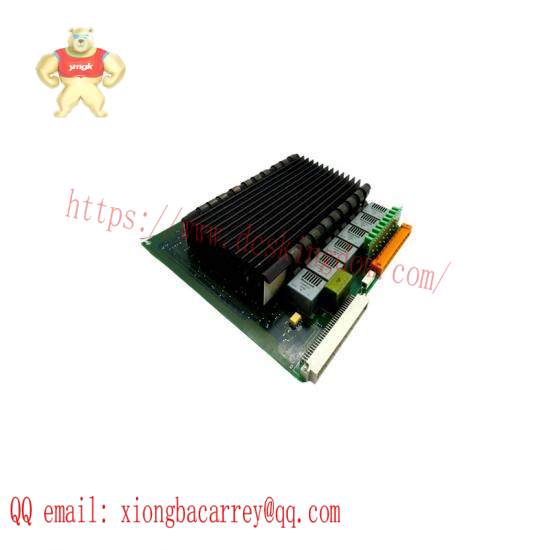

    Engineered for precision and reliability, the ABB 3HAB2207-1 Robot Servo Drive Board is an essential component in modern industrial automation. This board is specifically designed to provide seamless integration with robotic arms, enabling them to perform complex tasks with unparalleled accuracy.

    Featuring a wide operating voltage range of 24V DC, it is suitable for a variety of industrial environments and equipment requirements. The drive board supports up to 10 kHz output frequency, ensuring smooth and responsive operation of robotic systems.

    With a power rating of 200W, this board is capable of handling the power demands of even the most demanding robotic applications, ensuring consistent performance without overheating. Its robust design includes passive air cooling to maintain optimal temperature levels under various operating conditions.

    Equipped with an RS485 communication interface, the drive board facilitates efficient data exchange with other components in the system, enhancing the overall system integration and control capabilities. This feature is crucial for coordinating multiple robotic actions in complex assembly lines or manufacturing processes.

    Operating within the temperature range of -10°C to +45°C, the ABB 3HAB2207-1 Robot Servo Drive Board is designed for durability and can withstand the rigors of industrial use. Its IP20 protection class ensures protection against dust and light splashes, safeguarding the board from environmental hazards common in industrial settings.
