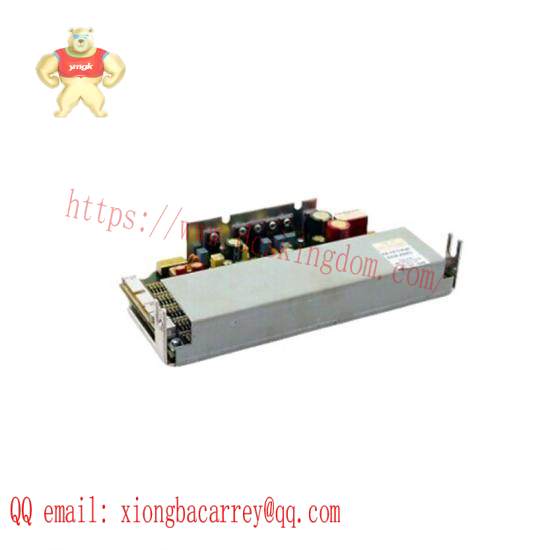

ABB – Board

Serial Number:3HAA3563-AMA/0

Module Type:Serial Measurement Board

Brand:ABB

Measurement Range:Up to 4096 channels

Sampling Rate:Up to 1 MHz

Accuracy:±0.01% of full scale

Operating Temperature:-20°C to +60°C

Power Consumption:Max 12W

Dimensions:150mm x 100mm x 30mm

Weight:Approx. 250g

Connection:RS-485 interface

Operating Voltage:DC 24V

Communication Protocol:MODBUS RTU

    This serial measurement board from ABB is meticulously engineered to meet the stringent requirements of modern industrial automation. Its robust design ensures seamless integration into complex control systems, offering unparalleled performance and reliability.

    Equipped with advanced signal processing capabilities, it accurately measures a wide range of signals including voltage, current, and temperature, making it suitable for a variety of applications from process control to machine monitoring.

    The board features a durable metal casing that provides excellent protection against environmental factors such as dust and moisture, ensuring long-lasting operation even under harsh conditions.

    Easy to install and compatible with a broad spectrum of ABB control systems, this module simplifies system integration and maintenance. Its intuitive interface allows for quick setup and configuration, enhancing operational efficiency.

    Designed with user convenience in mind, the ABB 3HAA3563-AMA/0 Serial Measurement Board supports both easy access to diagnostic information and remote monitoring capabilities, providing users with real-time insights into system performance.
