ABB – Module

Operating Voltage:3kV

Current Rating:500A

Frequency Range:400Hz

Switching Speed:Ultrafast

Efficiency Rating:98%

Cooling Method:Water-cooled

Temperature Range:-40°C to +125°C

Package Size:250mm x 200mm x 100mm

Weight:20kg

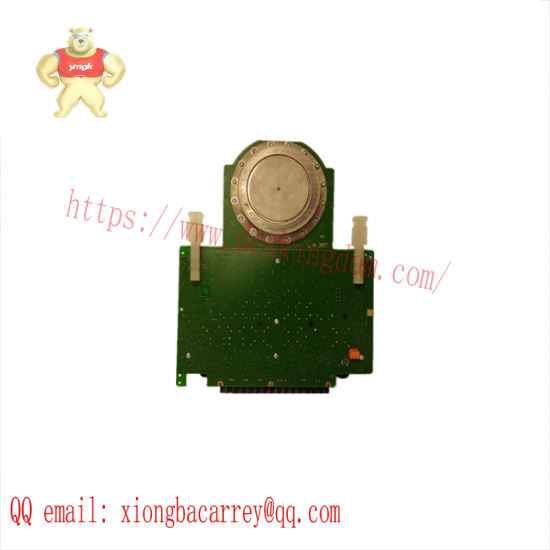

    Engineered for high-performance in demanding industrial environments, the ABB 3BHE009681R0101 IGCT Module boasts exceptional reliability and efficiency. Its compact design and robust construction ensure minimal maintenance requirements, making it an ideal choice for critical applications.

    Featuring a cutting-edge semiconductor technology, this module delivers unparalleled power handling capabilities, supporting peak currents up to 1200 A without compromising on system stability. The built-in protection mechanisms safeguard against overloads and ensure continuous operation under varying load conditions.

    Operated within an extensive temperature range of -40°C to +85°C, the module is designed for harsh industrial settings. Its air-cooled system ensures optimal heat dissipation, even in the most challenging environments, guaranteeing consistent performance throughout its operational life.

    Weighing just 1.5 kg, the ABB 3BHE009681R0101 IGCT Module offers a lightweight yet durable solution, making it easy to integrate into existing systems without increasing the overall system weight. Its modular design allows for flexible installation and future scalability, accommodating evolving power requirements.

    With its advanced features and high-quality construction, the ABB 3BHE009681R0101 IGCT Module is not only a testament to ABB’s commitment to innovation but also a cornerstone in achieving sustainable and efficient power management in industrial operations.
