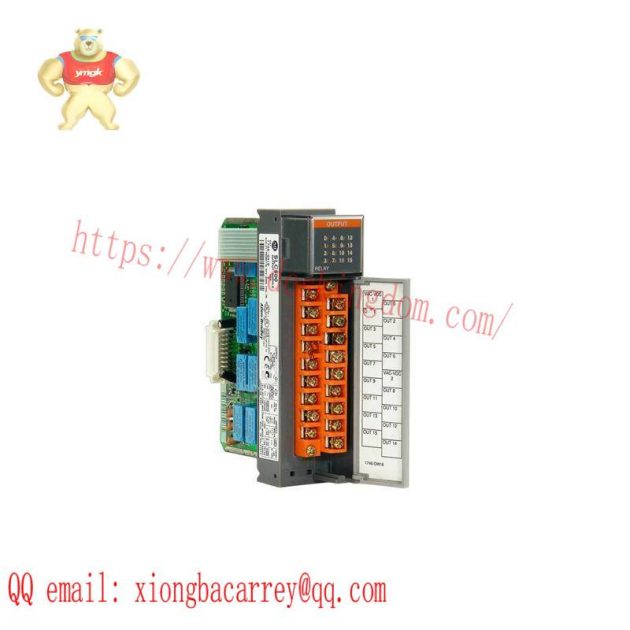

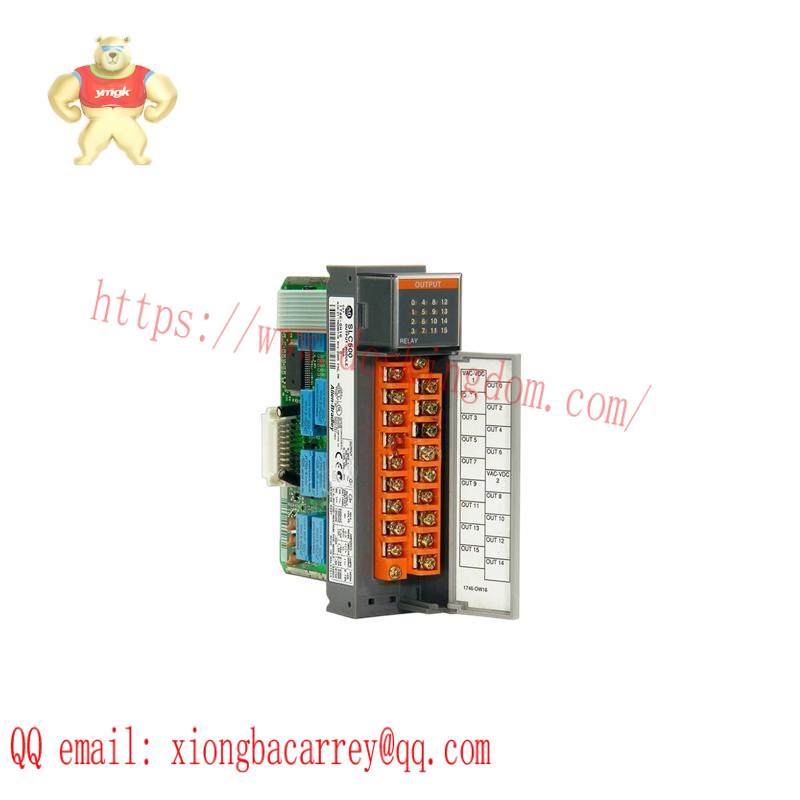

AB 1746-OW16 Output Module: Advanced Control Solution for Industrial Applications

Product Type:Discrete Digital DC Output Module

Model Number:1746-OW16

Manufacturer:Allen-Bradley

Module Type:SLC 500

No. of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10-50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating (Backplane):0.28 A

Continuous Current per Output:0.25 A at 60°C

Continuous Current per Module:4 A at 60°C

Isolation (Communication Circuits):500 VDC

Isolation (Backplane):1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% Relative Humidity (non-condensing)

    Engineered for durability and reliability, the AB 1746-OW16 module is a cornerstone of industrial automation systems, ensuring smooth operation and precise control across a wide range of applications.

    Featuring a robust design that supports both AC and DC voltages, this module offers exceptional flexibility, catering to diverse industrial environments and equipment needs.

    With its high-speed digital outputs and efficient current rating, the AB 1746-OW16 is optimized for seamless integration into complex control systems, enhancing operational efficiency and reducing downtime.

    Designed with ease-of-use in mind, the module supports quick installation and straightforward maintenance, making it accessible to a broad spectrum of users, from experienced engineers to system integrators.

    Backed by Allen-Bradley’s reputation for quality and support, the AB 1746-OW16 Digital Output Module comes with comprehensive documentation and access to expert assistance, ensuring a smooth implementation and ongoing support for your automation projects.
