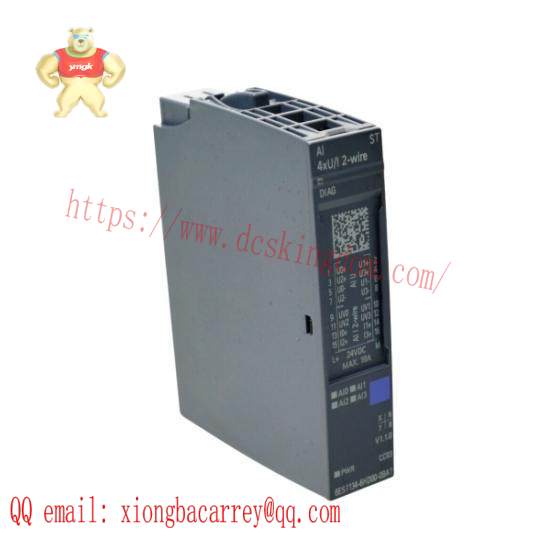

Siemens SIMATIC DP 6ES7 134-6HD00-0BA1 Analog Input Module

Model:6ES7 134-6HD00-0BA1

Manufacturer:Siemens

Module Type:Analog Input

Application Range:ET 200S

Width:15 mm

Cycle Time:0.5 ms

Operational Limit:+/-0.1%

Resolution:15 bit+sign

Current Input Range:4.. 20mA; 15 bit

Voltage Input Range:15 bit+sign, 4.. 20mA

LED Status:SF LED (group fault)

    The Siemens SIMATIC DP 6ES7 134-6HD00-0BA1 Analog Input Module is engineered for seamless integration into modern industrial automation systems, offering enhanced performance and reliability. This high-feature module is designed with an advanced signal processing capability, allowing it to accurately interpret a wide range of temperature data from RTD (Resistance Temperature Detector) and TC (Thermocouple) sensors.

    With its compact design, this module efficiently utilizes space while delivering exceptional performance, making it an ideal choice for both new and existing industrial setups. Its ability to support various fieldbus protocols ensures compatibility with diverse automation systems, facilitating easy setup and maintenance.

    Featuring a cycle time of 0.5 milliseconds, the module ensures real-time data processing, enabling precise control and monitoring of industrial processes. The operational limit of +/-0.1% ensures high accuracy, even under varying environmental conditions, thus contributing to the overall efficiency of the system.

    The inclusion of an integrated EMI filter provides protection against electrical interference, ensuring stable operation in noisy industrial environments. Additionally, the module’s support for DeviceNet, Profibus, LonWorks, and CANopen fieldbuses enhances its versatility and integration capabilities.

    Suitable for a wide range of applications, including but not limited to temperature monitoring, process control, and data acquisition systems, the Siemens SIMATIC DP 6ES7 134-6HD00-0BA1 Analog Input Module is designed to meet the stringent requirements of modern industrial automation.
