Model Number:6AV6644-0AB01-2AX0
Display Size:7-inch
Display Technology:TFT
Resolution:800×480 pixels
Touch Operation:Yes
Color Display:65,536 colors
Connectivity:[“RS232″,”RS485″,”Ethernet (RJ45)”]
USB Interface:Host USB type A
Operating System:Windows CE
Interface Compatibility:Profinet, OPC-UA
Software:WinCC Flexible compatible
Weight:0.7 kg
Dimensions:W x H x D: 175 x 132 x 35 mm
Power Supply:12V DC
Operating Temperature:-20°C to +50°C
Humidity Range:5% to 95% non-condensing
Enclosure Rating:IP65

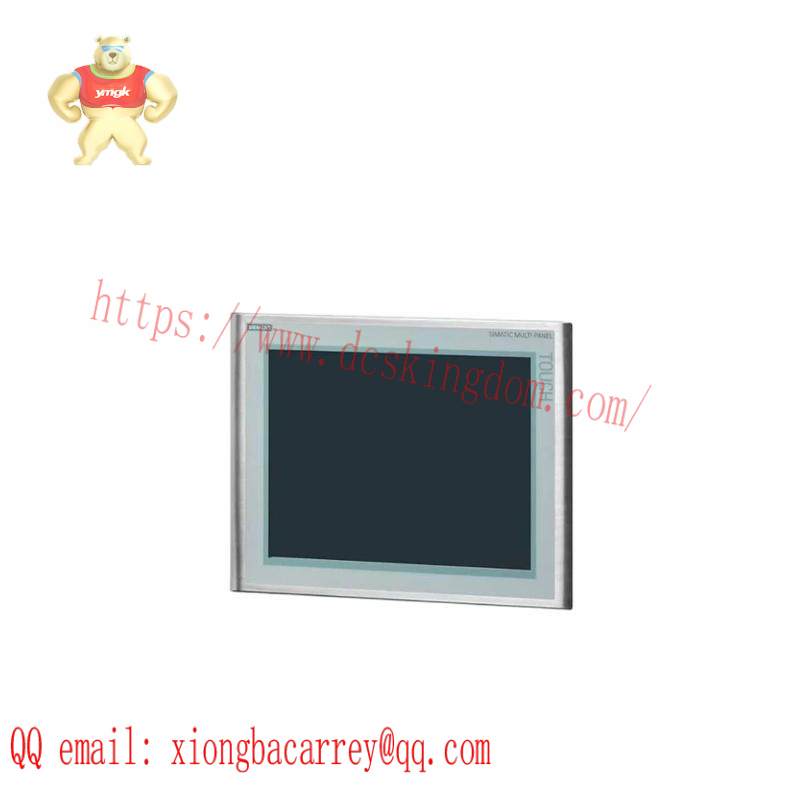

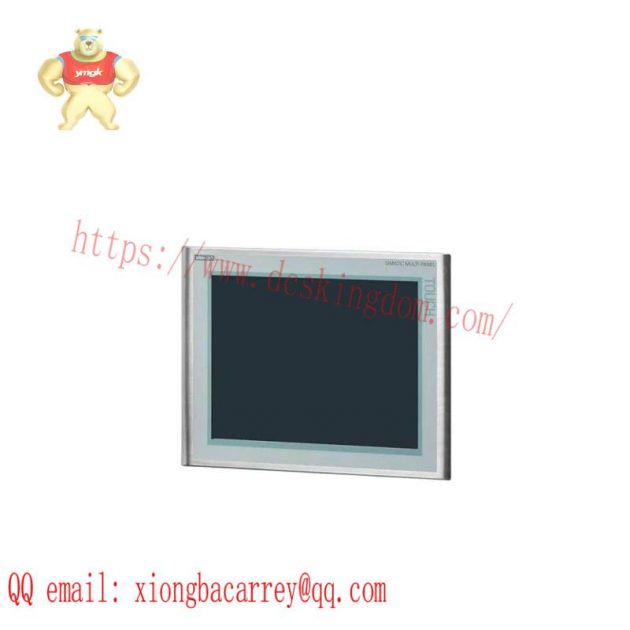

The SIEMENS 6AV6644-0AB01-2AX0 is equipped with a vibrant 7-inch TFT display, offering clear visibility and detailed information presentation. Its touch operation ensures user-friendly interaction, making it suitable for a wide range of industrial applications.
Equipped with multiple connectivity options including RS232, RS485, and Ethernet (RJ45), this terminal seamlessly integrates with various industrial systems, supporting Profinet and OPC-UA interfaces for enhanced communication capabilities.
With support for Windows CE and compatibility with WinCC Flexible, users can easily configure and manage their control systems, streamlining operations and maintenance tasks.
The robust design of the 6AV6644-0AB01-2AX0 ensures durability in harsh industrial environments. Its IP65 enclosure rating allows for operation in challenging conditions, while its wide operating temperature range (-20°C to +50°C) and humidity tolerance ensure reliable performance throughout the year.
Weighing just 0.7 kg, the terminal is lightweight yet sturdy, making it easy to install and move as needed. Its compact dimensions (W x H x D: 175 x 132 x 35 mm) allow for efficient use of space on the control panel or workstation.
