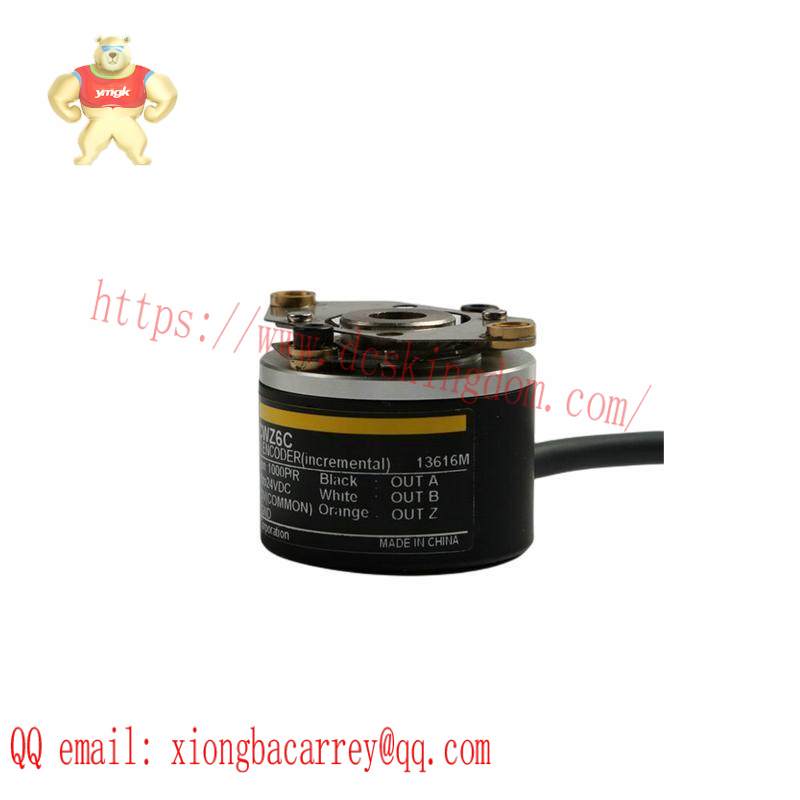

OMRON E6H-CWZ3X Hollow Shaft Line Driver Encoder

Type:Hollow Shaft Line Driver Encoder

Resolution:1,024 Counts per Revolution

Power Supply Voltage:10 to 30 VDC

Operating Temperature Range:-20°C to +70°C

Shaft Diameter:Φ5.5mm

Cable Length:1.5m

Output Type:Open Collector

Connection Type:M12 Connector

    The OMRON E6H-CWZ3X Hollow Shaft Line Driver Encoder is engineered with precision to deliver unparalleled accuracy in measuring rotational movements. Its compact design and robust construction make it ideal for space-constrained environments and harsh industrial conditions.

    Featuring an innovative hollow shaft design, this encoder allows for direct mounting on the motor shaft without compromising on performance or functionality. This feature simplifies integration and enhances the reliability of the overall automation system.

    With its high-resolution 13-bit absolute technology, the E6H-CWZ3X ensures precise position tracking and reduces the risk of drift over time, making it suitable for demanding applications where accuracy is paramount.

    The encoder’s open-collector output enables easy interfacing with various control systems, facilitating seamless integration into existing automation setups. Its wide operating temperature range (-20°C to +70°C) ensures reliable operation across diverse manufacturing environments.

    Equipped with IP67-rated protection, the E6H-CWZ3X is designed to withstand dust and splashing water, making it suitable for use in dusty or wet industrial settings. This feature not only enhances durability but also reduces maintenance requirements, contributing to lower operational costs.
