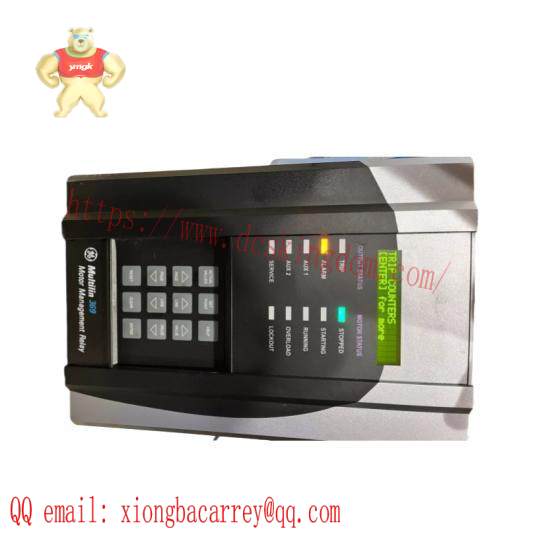

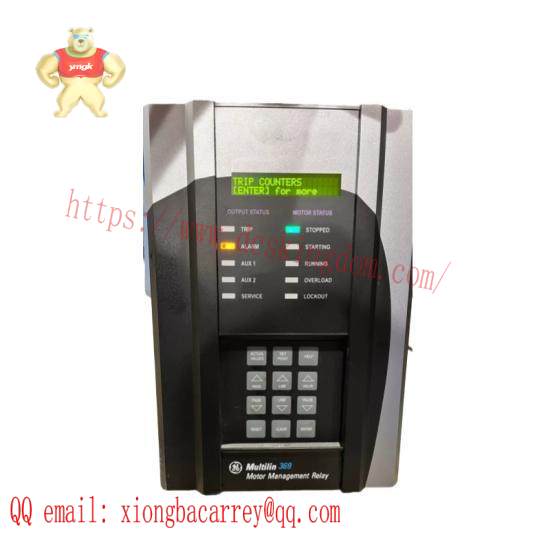

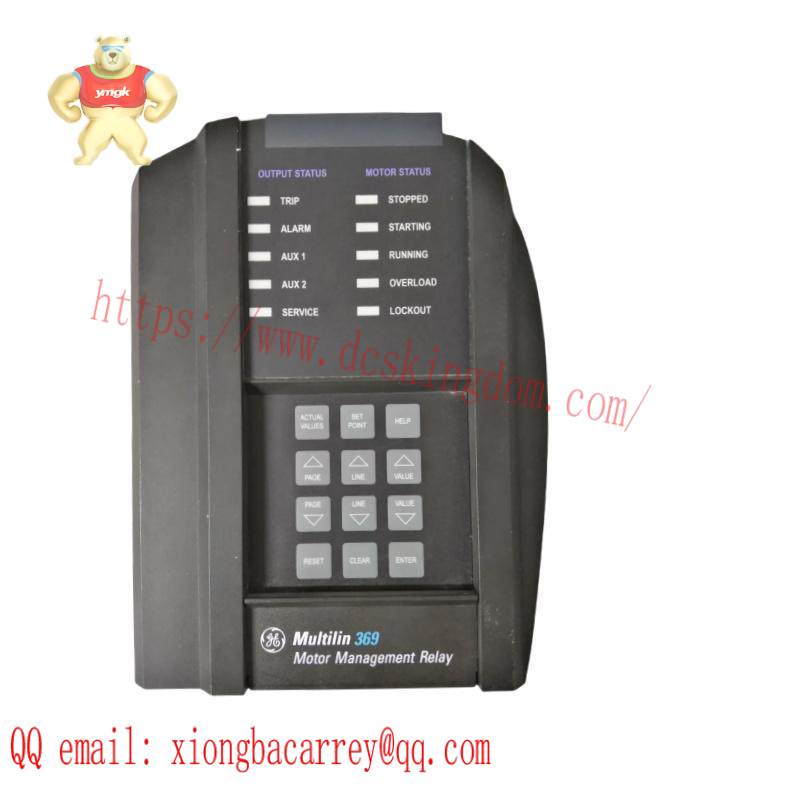

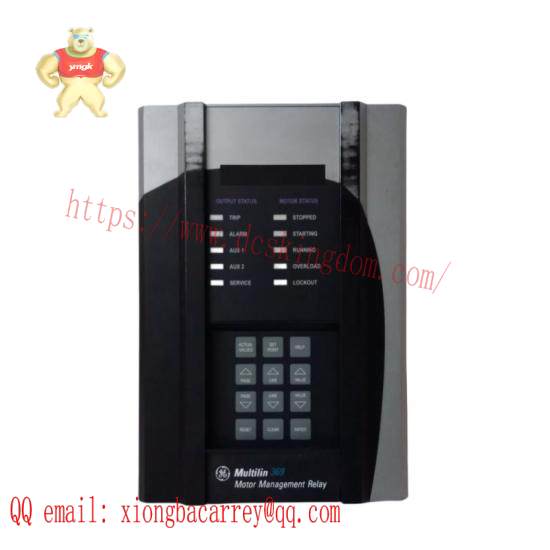

GE 369-HI-R-M-0-0 Motor Management Relay - Optimized for Industrial Motors

GE 369-HI-R-M-0-0 Motor Management Relay – Optimized for Industrial Motors

In stock

This advanced motor management relay by GE Multilin provides comprehensive protection and control for medium to large motors through its waveform capture, event reports, data logging, and built-in optional metering capabilities. It significantly reduces maintenance costs and time spent on troubleshooting.

Control Power Nominal:20 VA

Control Power Maximum:65 VA

Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz

Dimensions:Approx. 12 in H x 5 in W x 8 in L

Ground Current Input Frequency:20 to 100 Hz

Insulation Class:Class I

Phase Current Input Conversion:True RMS, 1.04 ms/sample

Weight:Approx. 4.5 kg

The GE 369-HI-R-M-0-0 is part of General Electric’s Multilin 369 Motor Management Relay series, specifically designed for medium-sized motors and motor equipment. With its advanced metering capabilities and waveform capture feature, this relay ensures reliable monitoring and control, leading to significant reductions in maintenance costs and downtime.

Equipped with an optional metering feature and twelve RTD inputs, the 369-HI-R-M-0-0 provides comprehensive data on motor performance. Its waveform capture functionality allows for detailed analysis of motor operations, enabling proactive maintenance and quick troubleshooting when issues arise.

Designed for ease of use and integration, the 369-HI-R-M-0-0 features a compact design with dimensions of approximately 12 inches in height, 5 inches in width, and 8 inches in length. This makes it ideal for installations where space is limited. The weight of just 4.5 kg ensures that it can be easily installed and maintained without requiring extensive physical effort.

The relay operates efficiently within a wide range of control power inputs, including 110 to 250 VDC and 100 to 240 VAC at 50/60 Hz. It supports a ground current input frequency of 20 to 100 Hz, ensuring compatibility with various industrial environments. Its insulation class meets industry standards, providing safety and reliability in demanding applications.

By leveraging advanced metering technology and adaptive capabilities, the 369-HI-R-M-0-0 streamlines motor management processes, enhancing overall operational efficiency. Whether you’re managing motors in a manufacturing plant, a power generation facility, or any other industrial setting, this relay offers robust solutions to meet your needs.

GE 369-HI-R-M-0-0
