Module Type:Digital DC Sinking Output
Number of Outputs:32 Channels
Nominal Output Voltage:24 VDC
Output Voltage Range:5-50 VDC
Backplane Current:0.190 A
Weight:0.3 kg
Enclosure Type:Open Type
Mounting Method:Chassis
Temperature Rating:0-60°C
Environmental Conditions:5-95% RH
Overvoltage Protection:7.5 VAC RMS
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Absolute Input Current:-30 to +30 mA (Max.)
Input Range:-20 to +20 mA
Common Mode Voltage Range:-20 to +20 V

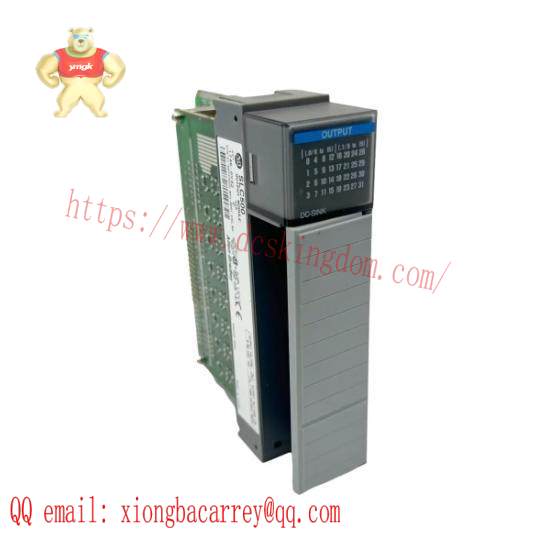

Unleash the power of precise control with the Allen Bradley 1746-OV32 Output Module, an indispensable component in your SLC 500 system. This module boasts a high-resolution digital DC sinking output design, enabling seamless integration and superior performance in industrial automation environments.
With its capacity to handle 32 output channels, this module ensures flexibility and scalability in managing complex systems. Its nominal voltage of 24 VDC and voltage range of 5-50 VDC allows for versatile applications across various industries, making it a versatile choice for diverse operational needs.
Featuring a backplane current draw of 0.190 A, the 1746-OV32 is optimized for efficient power consumption without compromising on reliability. Weighing only 0.3 kg, it’s lightweight and compact, ideal for streamlined installation within your existing infrastructure.
The open type enclosure design ensures robust protection against environmental hazards while maintaining ease of access for maintenance and troubleshooting. Additionally, it offers excellent isolation ratings for both communication circuits and the backplane, ensuring reliable signal transmission even under demanding conditions.
The Allen Bradley 1746-OV32 is engineered for operation within a temperature range of 0 – 60 DEG C, ensuring stable performance in a wide variety of industrial settings. Moreover, it withstands humidity levels of 5 – 95%, guaranteeing long-lasting functionality in varying environmental conditions.
