Input Voltage Rating:324-528VAC, RMS, 3-Phase
Nominal Value:360-480V
AC Input Frequency:47 to 63 Hz
Main AC Input Current:24.0 A, Nominal
Maximum Inrush Current:22.0 A
DC Input Voltage:458-747VDC
DC Input Current:22.6 A
Output Power:15 kW
Operating Wattage:15 kW
Control Power AC Input Voltage:95-264Vrms, Single Phase

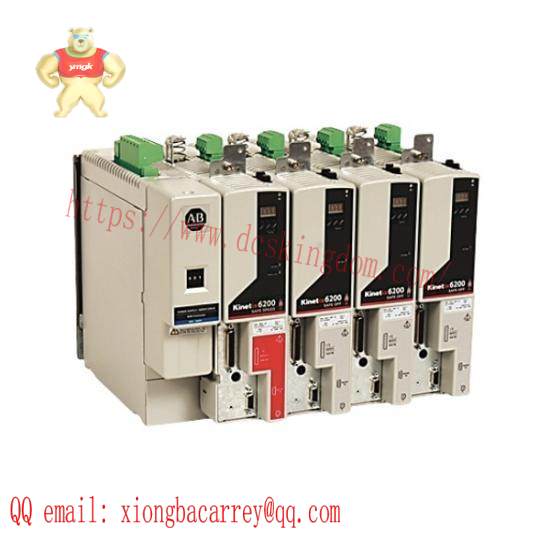

The Allen-Bradley 2094BC02M02M is a high-performance modular servo drive, engineered to meet the demanding requirements of industrial automation systems. It is part of the Kinetix 6200 series, known for its reliability and efficiency.
Featuring a wide range of nominal input voltages from 360V to 480V and a robust frequency response of 47 to 63 Hz, this drive is designed to handle various industrial applications seamlessly. Its ability to operate on a 3-phase voltage ensures compatibility with most industrial setups.
With an impressive nominal input current of 24.0 A and a maximum inrush current of 22.0 A, the 2094BC02M02M delivers high power with exceptional efficiency. The integrated 15 kW converter ensures smooth operation, making it suitable for heavy-duty applications.
For control input power, it supports FNQ-R-10 with a 10A rating or FNQ-R-7.5 with a 7.5A rating, ensuring flexibility in integration with different control systems. The recommended Allen-Bradley fuse circuit breaker is either the 1492-SPM2D060 or 1492-SPM1D150 for enhanced safety and protection.
Equipped with a 24V DC output with a capacity of 8A, this drive provides the necessary power for various auxiliary devices. Additionally, it comes with an internal control line filter at 230V AC, enhancing signal integrity and reducing noise in the control loop.
