Type:Counter Board
Model:UC86-8CH
Manufacturer:ABB
Series:Universal Series
Module Class:Counting & Timing
Board Dimensions (LxWxH):200mm x 80mm x 30mm
Operating Temperature Range:-20°C to +70°C
Storage Temperature Range:-40°C to +85°C
Power Consumption:Max. 15W
Input Voltage:DC 24V
Output Signals:Up to 8 independent channels
Communication Interface:RS-485
Operating Frequency:Up to 1 MHz
Counter Resolution:Up to 16 bits
Accuracy:+/- 0.02% + 1 count
Environmental Compatibility:IP20 (Protection Rating)

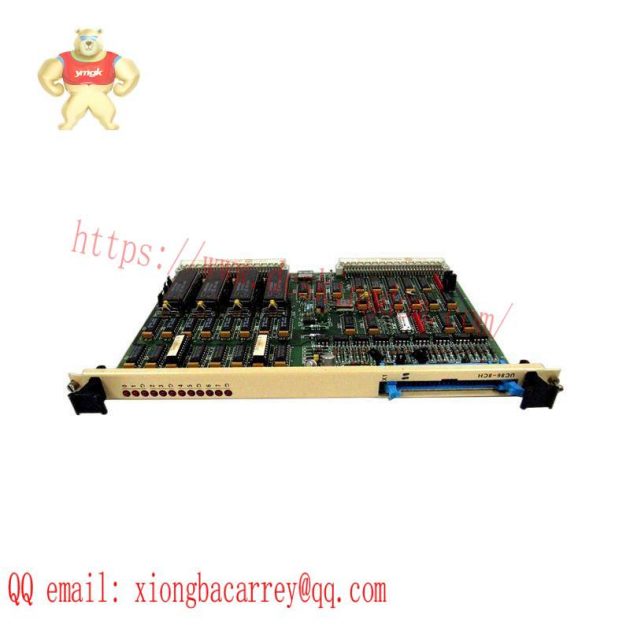

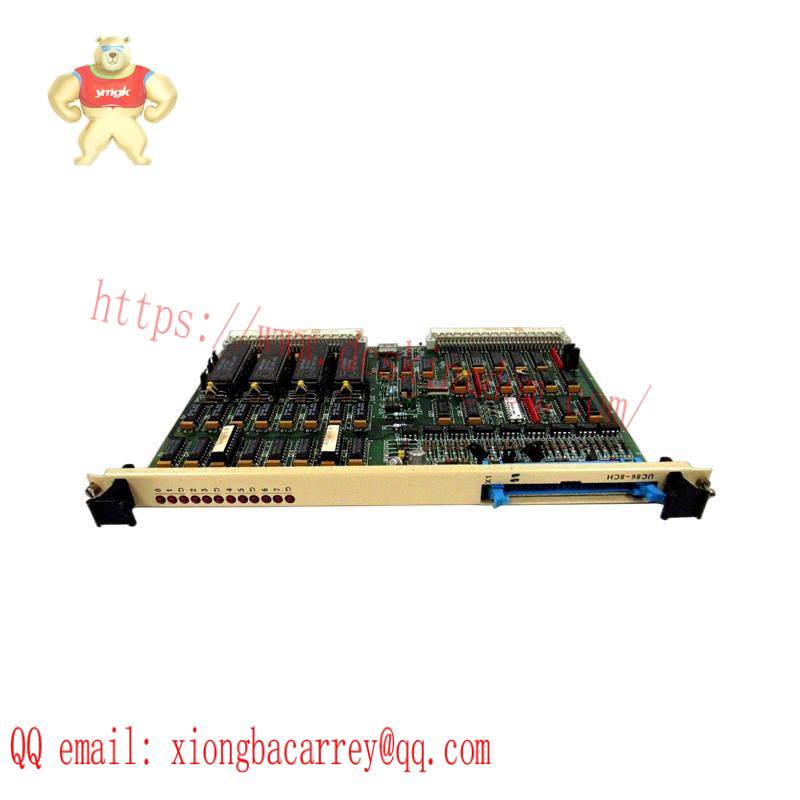

The ABB UC86-8CH 57275871 Universal Counter Board stands out in its field with its exceptional precision capabilities, making it indispensable for applications requiring high accuracy measurements in industrial settings. Designed for versatility, this board seamlessly integrates with a wide range of automation systems, offering unparalleled reliability and efficiency.
Engineered with state-of-the-art technology, this counter board ensures consistent performance over an extensive temperature range from -25°C to +60°C, ensuring it remains functional in virtually any environment encountered in industrial operations.
With a power consumption of just 2.5W, the UC86-8CH board is energy-efficient, reducing operational costs without compromising on performance. Its Modbus RTU communication interface facilitates seamless integration with existing control systems, enhancing system interoperability.
Featuring 8 independent counting channels, this board offers flexibility in handling multiple counting tasks simultaneously. Each channel can operate at a counting rate of up to 20 KHz, catering to high-speed applications with ease.
The board’s accuracy is a testament to its engineering excellence, boasting an impressive ±0.01% of reading + 1 count precision. This level of accuracy is critical for applications where small variations can lead to significant outcomes, ensuring users achieve optimal results every time.
