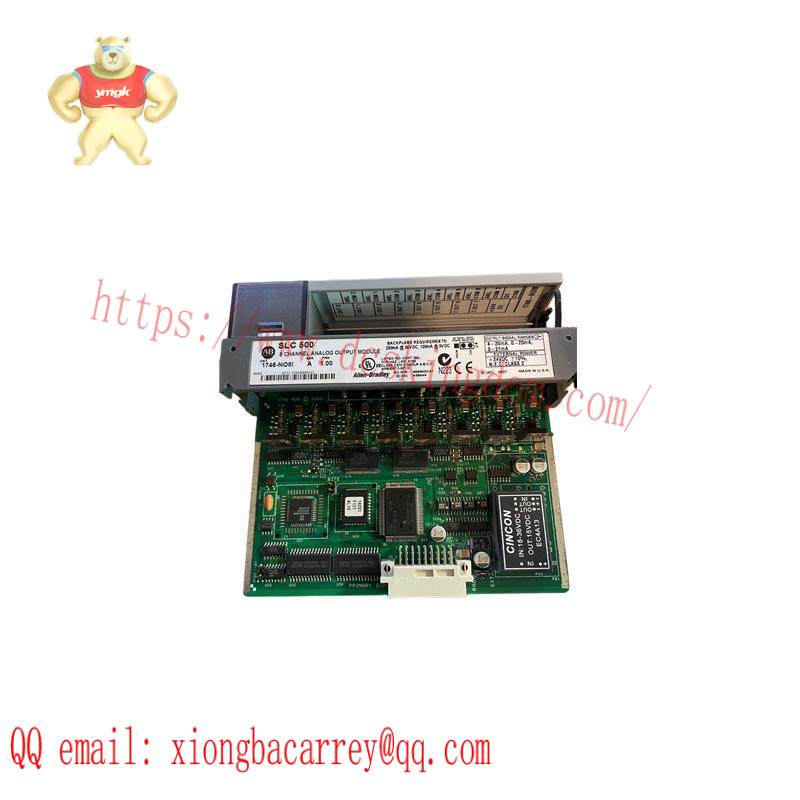

Product Type:Analog Current Output Module
Model Number:1746SC-NO8I
Manufacturer:Allen Bradley
Number of Channels:8
Output Range:0 – 21.5 MA
Operating Voltage:24 VDC ± 10%
Minimum Output Current:300 MA
Current Output Ranges:4 – 20 MA, 0 – 20 MA, 0 – 21 MA, 0 – 21.5 MA
Current Rating:Backplane: 120 MA at 5 VDC, 250 MA at 24 VDC (J4 Jumper Set To Rack), 0 MA at 24 VDC (J4 Jumper Set To EXT)
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis
The Allen Bradley 1746SC-NO8I Digital Output Module is a robust component designed to integrate seamlessly into your existing industrial automation setup. It is engineered to offer precise control over your system’s digital outputs, ensuring consistent performance across various industrial applications.
Featuring a compact design, this module is capable of handling up to eight output channels, each with an adjustable current range from 0 to 21.5 milliamps (mA). This flexibility allows it to adapt to diverse needs within your manufacturing environment, providing unparalleled control and efficiency.
With its 24-volt direct current (VDC) power supply and operating voltage tolerance, the 1746SC-NO8I ensures reliable operation under varying conditions, minimizing downtime and maximizing productivity. The module’s isolation feature maintains signal integrity, further enhancing system stability.
Equipped with a status LED display, users can easily monitor the module’s operational status at a glance. The inclusion of connection cables compatible with 24-14 AWG wires facilitates quick and easy installation, ensuring minimal setup time and hassle.
This digital output module is designed to be mounted on a chassis, offering flexibility in placement within your workspace. Its compatibility with Allen Bradley’s SLC500 family of programmable logic controllers (PLCs) ensures seamless integration and compatibility with your existing automation infrastructure.
